Details

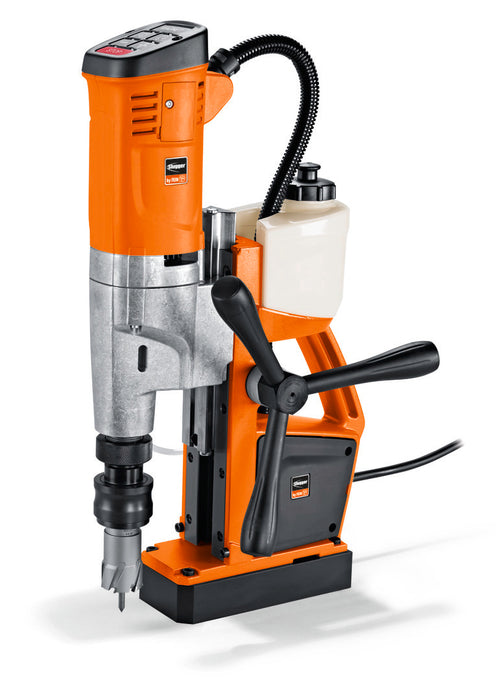

- Small, highly versatile 1-speed universal magnetic core drill with forward/reverse rotation, MT2 tool mount, and electronic speed control.
- FEIN high-power motor with tacho electronics maintains constant cutting speeds and uniform performance under heavy load.
- Broad operational flexibility: core drilling, twist drilling, tapping up to 9/16 in (M14), countersinking, and reaming.
- Morse Taper 2 (MT2) tool mounting with QuickIN and 3/4" Weldon arbor compatibility for fast, tool-free cutter changes.
- Double drill motor guide rails allow smooth, rigid travel and accommodate extra-long drill tooling.
- Digital magnetic holding force indicator confirms secure surface clamping before the cut begins.
- Internal motor cable routing protects electrical wiring from snagging or tearing on sharp structural steel edges.
- Integrated tilt sensor automatically cuts motor power immediately if the machine shifts or breaks magnetic contact.
Technical Data
| Max. Core Drill Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 5/8 in (16 mm) |
| Tapping Max. | 9/16 in (M14) |
| Countersinking Max. | 1-3/8 in (35 mm) |
| Reaming Max. Dia. | 5/8 in (16 mm) |
| Tool Mount / Spindle Taper | MT2 |
| Cutter Arbor | 3/4 in Weldon / QuickIN (Tool-free) |
| Power Consumption | 1,100 W |
| Power Output | 550 W |
| Full Load Speed | 130 – 520 RPM |
| No Load Speed | 130 – 520 RPM |
| Stroke Length | 5-5/16 in (135 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,250 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 23.37 lbs (10.6 kg) |
Price Includes
- 1 JMU 137 MQW Universal Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin (4-1/8 in / 105 mm)
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 MT2 Drift Ejector Key
- 1 Heavy-Duty Transport / Storage Case
