Authorized Partner✔ Official Partner & Authorized Distributor
As an authorized distributor, we supply 100% genuine FEIN machinery, annular cutters, and accessories backed by the official manufacturer warranty and direct factory support.
■ 3-Year FEIN PLUS Warranty: Eligible for extended factory warranty coverage.
■ Made for Metal: Engineered for continuous heavy-duty industrial holemaking.
■ Factory Certified: 100% original equipment, full factory support, never grey-market.
Details
- Complete cordless universal magnetic core drill kit powered by the 18V AMPShare battery platform with ProCORE high-power cells.
- Small, highly mobile 1-speed design with forward/reverse rotation, MT2 spindle mount, and permanent magnet.
- Extremely wear-resistant, brushless FEIN PowerDrive motor delivers continuous high torque and maximum operating life.
- Narrow permanent magnet with pre-magnetization provides failsafe magnetic adhesion that consumes zero battery run time.
- Full operational versatility: core drilling, twist drilling, tapping up to 9/16 in (M14), countersinking, and reaming.
- Morse Taper 2 (MT2) tool mounting with QuickIN and 3/4" Weldon arbor compatibility for quick tool changes.
- Integrated tilt sensor automatically cuts motor power immediately if the machine shifts or breaks magnetic adhesion.
- Simple, intuitive control layout placed directly in the operator's line of sight.
Technical Data
| Battery Voltage | 18 V |
| Battery Capacity | 8.0 Ah (2x ProCORE included) |
| Battery Interface | 18 V AMPShare |
| Motor Type | Brushless FEIN PowerDrive |
| Max. Core Drill Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 1/2 in (13 mm) |
| Tapping Max. | 9/16 in (M14) |
| Countersinking Max. | 1-3/8 in (35 mm) |
| Reaming Max. Dia. | 1-3/8 in (35 mm) |
| Tool Mount / Arbor | MT2 / QuickIN (3/4 in Weldon adapter) |
| Full Load Speed | 130 – 520 RPM |
| Stroke Length | 5-5/16 in (135 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,025 lbs (9,000 N) Permanent Magnet |
| Magnetic Base Dimensions | 7-11/16 x 2-3/4 in (195 x 70 mm) |
| Weight without Battery | 26.68 lbs (12.1 kg) |
| Weight with Battery | 28.88 lbs (13.1 kg) |

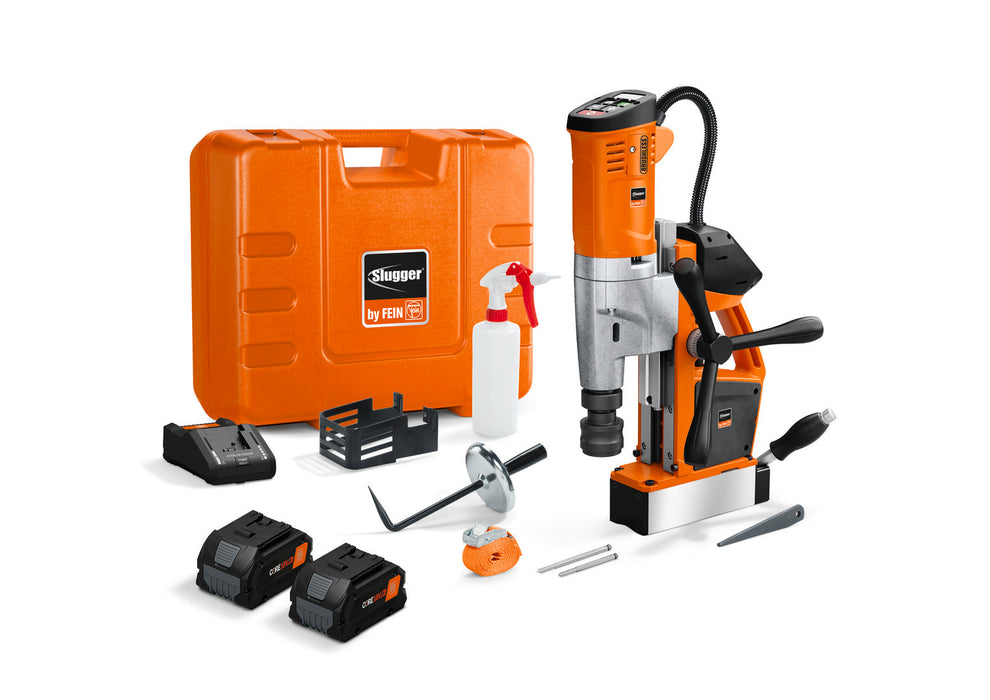

Price Includes
- 1 AJMU 137 PMQW 18V AS Cordless Magnetic Core Drill
- 2 ProCORE 18V 8.0 Ah AS Li-ion Battery Packs
- 1 Rapid Charger GAL 1880 CV AS
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin (100 mm)
- 1 Swarf / Chip Protection Guard
- 1 MT2 Drift Ejector Key
- 1 Heavy-Duty Plastic Transport Case
