Details
- Compact universal 2-speed magnetic core drill engineered for high versatility on the job site and in the fabrication shop.
- Mechanical 2-speed gearbox with electronic speed control and memory function for consistent cutting performance.
- Forward and reverse rotation enables core drilling, twist drilling, tapping up to 5/8" (M16), countersinking, and reaming.
- Morse Taper 3 (MT3) tool mount with tool-free 3/4" Weldon arbor enables rapid cutter changes and broad tooling compatibility.
- Double drill motor guide rails allow stable operation with extra-long annular cutters and twist drills.
- Intuitive, error-proof control concept positioned directly in the operator's line of sight.
- Digital magnetic holding force indicator alerts the operator to ensure secure adhesion before starting the cut.
- Reversible hand feed wheel can be positioned on either side for tight-quarter access.
Technical Data
| Max. Carbide Cutter Dia. | 2 in (50 mm) |
| Max. HSS Cutter Dia. | 1-5/8 in (40 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 7/8 in (23 mm) |
| Tapping Max. | 5/8 in (M16) |
| Countersinking Max. | 2 in (50 mm) |
| Reaming Max. Dia. | 7/8 in (23 mm) |
| Tool Mount / Spindle Taper | MT3 |
| Cutter Arbor | 3/4 in Weldon (Tool-free) |
| Power Consumption | 1,200 W |
| Power Output | 610 W |
| Full Load Speed (Gear 1) | 130 – 260 RPM |
| Full Load Speed (Gear 2) | 260 – 520 RPM |
| Stroke Length | 5-11/16 in (145 mm) |
| Total Stroke Range | 12-3/8 in (315 mm) |
| Magnetic Holding Force | 2,810 lbs (12,500 N) |
| Magnetic Base Dimensions | 7-11/16 x 3-9/16 in (195 x 90 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 31.31 lbs (14.2 kg) |

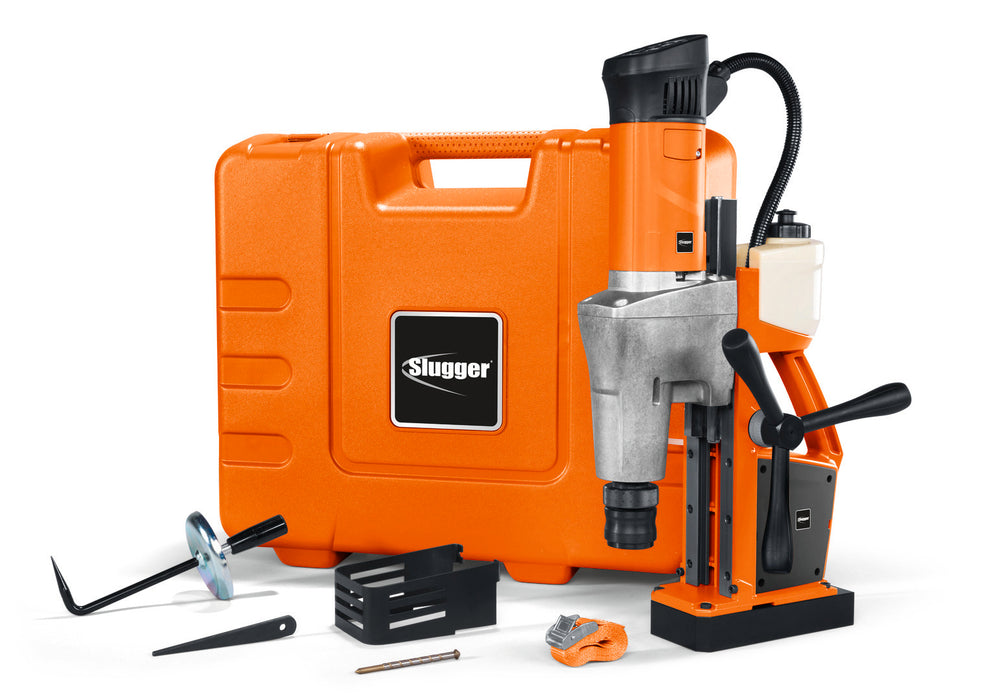

Price Includes
- 1 JCM 200 U Universal Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin (4-1/8 in / 105 mm)
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 MT3 Drift Ejector Key
- 1 Heavy-Duty Transport / Storage Case
