Authorized Partner✔ Official Partner & Authorized Distributor
As an authorized distributor, we supply 100% genuine FEIN machinery, annular cutters, and accessories backed by the official manufacturer warranty and direct factory support.
■ 3-Year FEIN PLUS Warranty: Eligible for extended factory warranty coverage.
■ Made for Metal: Engineered for continuous heavy-duty industrial holemaking.
■ Factory Certified: 100% original equipment, full factory support, never grey-market.
Details
- Heavy-duty cordless universal magnetic core drill kit tailored for steel and bridge construction, bundled with comprehensive HSS annular cutter accessories.
- Powered by the AMPShare 18V battery platform with ProCORE high-power cell technology for maximum cordless job-site independence.
- Extremely wear-resistant, brushless FEIN PowerDrive motor engineered for up to 60,000 holes across demanding industrial duty cycles.
- Narrow permanent magnet with pre-magnetization provides failsafe clamping adhesion that consumes zero battery power.
- Forward/reverse rotation, electronic speed control, and memory function for core drilling, twist drilling, tapping up to 1/2", reaming, and countersinking.
- Morse Taper 2 (MT2) tool mount with tool-free 3/4" straight shank arbor for rapid cutter changes and universal tooling compatibility.
- High workplace safety featuring a digital magnetic holding force indicator and integrated tilt sensor safety shutoff.
- Comprehensive job-site accessory bundle includes 5 HSS NOVA annular cutters, a FEIN Magbrush chip collector, cutting paste, and a stackable L-BOXX system.
Technical Data
| Battery Voltage | 18 V |
| Battery Capacity | 8.0 Ah (2x ProCORE / CORE 18V included) |
| Battery Interface | 18 V AMPShare |
| Motor Type | Brushless FEIN PowerDrive |
| Tool Mount / Spindle Taper | MT2 / 3/4 in straight shank (Tool-free) |
| Max. HSS / Carbide Cutter Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) [up to 3 in (75 mm) optional] |
| Twist Drill Max. Dia. | 3/4 in (18 mm) |
| Tapping Max. | 1/2 in (M12) |
| Countersinking Max. Dia. | 1-1/4 in (31 mm) |
| Reaming Max. Dia. | 3/4 in (18 mm) |
| Full Load Speed | 130 – 520 RPM |
| Stroke Length | 5-5/16 in (135 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,023 lbs (9,000 N) Permanent Magnet |
| Magnetic Base Dimensions | 7-11/16 x 2-3/4 in (195 x 70 mm) |
| Weight without Battery | 26.90 lbs (12.2 kg) |
Price Includes

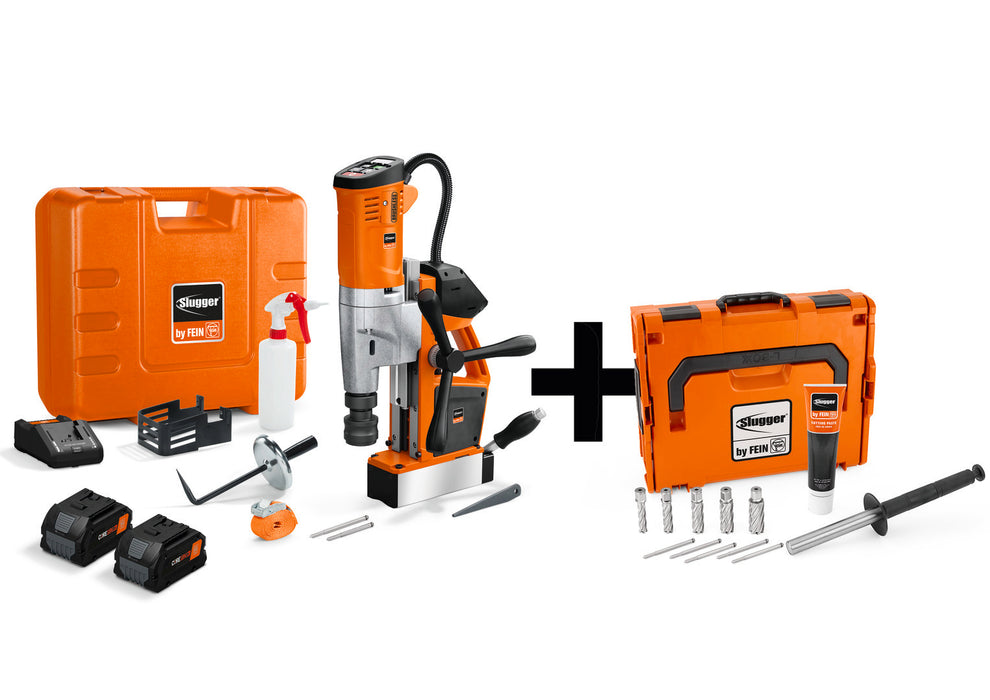

- 1 AJMU 137 PMQW 18 V AS Cordless Magnetic Core Drill
- 2 CORE 18 V / 8.0 Ah Li-Ion ProCORE Battery Packs
- 1 Rapid Charger GAL 18V-160 AS
- 5 HSS NOVA 2 in Annular Cutters (9/16", 11/16", 13/16", 15/16", and 1-1/16" dia.)
- 1 Coolant Pump & Hose System
- 1 Safety Lashing Strap
- 1 Chip Hook
- 1 Chip Guard
- 1 MT2 Drift Ejector Key
- 1 Centering Pin (1/4 x 3-1/4 in / 6.35 x 82 mm)
- 1 Centering Pin (1/4 x 3-9/16 in / 6.35 x 90 mm)
- 1 Centering Pin (1/4 x 4 in / 6.35 x 100 mm)
- 1 FEIN Magbrush Magnetic Chip Remover
- 1 Tube Slugger Cutting Paste
- 1 Heavy-Duty Drill Transport Case
- 1 L-BOXX 136 Accessory Storage Case
Factory Direct SupportCentralized Hub
FEIN Repair
Here at FEIN, we are dedicated to outstanding customer service and efficiency. As part of this ongoing commitment to excellence, FEIN sends all repairs to our Davenport, Iowa facility. As a benefit to our valued customers, our manufacturing, logistics, training and repair parts and services will be located in one central location. The unification of these departments will deliver faster repair turnaround times, which means you, our esteemed customer, can get back to work sooner.
- + Repairs performed by qualified experts.
- + Fast turnaround times.
- + Large inventory of parts.
- + 6-month warranty on repaired parts.
- + Lubrication of bearings and gearboxes.
