Details
- Intelligent, fully automatic drill feed enables high-volume, economical core drilling with minimal operator effort and uniform cutting times.
- Versatile operation allows seamless switching between automated drilling cycles and manual feed for spot drilling or conventional holemaking.
- Mechanical 2-speed gearbox with variable electronic speed control and memory function for drilling, tapping, countersinking, and reaming.
- High-performance 1,200 W motor with tacho electronics maintains constant RPM under load for extended tool life.
- Morse Taper 3 (MT3) spindle mounting ensures rigid concentricity and flexible tool adaptation with 3/4" Weldon arbors.
- Digital magnetic holding force indicator alerts the operator to optimal magnetic adhesion before the cut begins.
- Internal motor wiring routing eliminates snagging or tearing when working on tight structural steel beams.
- Integrated tilt sensor automatically cuts power if the magnetic base breaks contact or shifts during operation.
Technical Data
| Max. Core Drill Dia. | 2 in (50 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. (Manual) | 5/8 in (16 mm) |
| Tapping Max. | 5/8 in (M16) |
| Countersinking Max. | 2 in (50 mm) |
| Reaming Max. Dia. | 5/8 in (16 mm) |
| Tool Mount / Arbor | MT3 / 3/4 in Weldon |
| Feed System | Fully automatic or manual |
| Power Consumption | 1,200 W |
| Power Output | 610 W |
| Full Load Speed (Gear 1) | 130 – 260 RPM |
| Full Load Speed (Gear 2) | 260 – 520 RPM |
| Stroke Length | 5-11/16 in (145 mm) |
| Magnetic Holding Force | 2,810 lbs (12,500 N) |
| Magnetic Base Dimensions | 7-11/16 x 4 in (195 x 102 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 35.7 lbs (16.2 kg) |

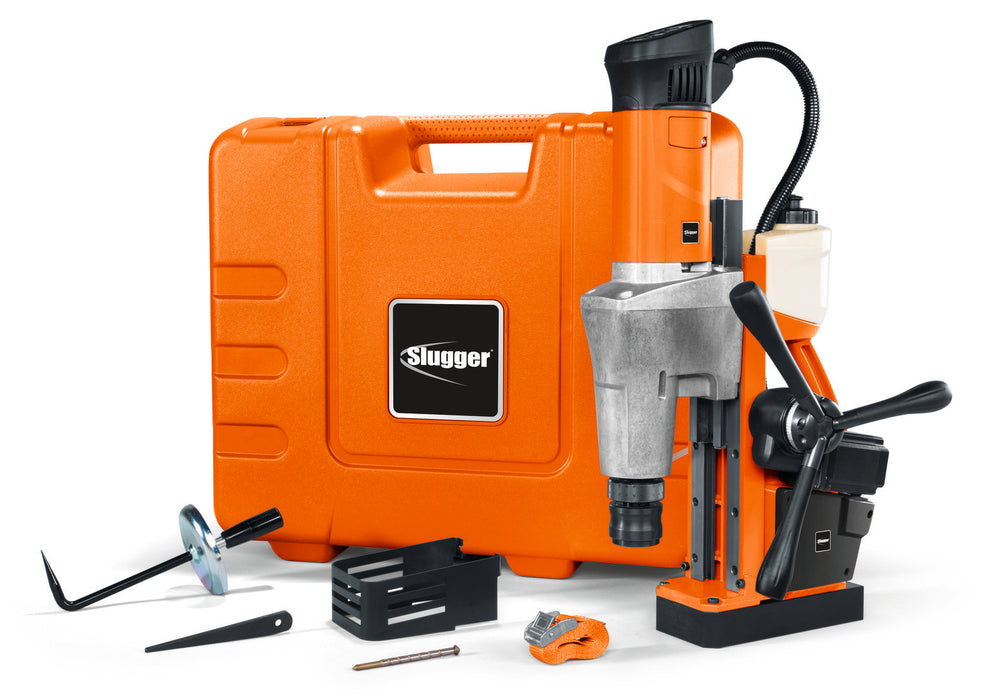

Price Includes
- 1 JCM 200 auto Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 3/4 in Weldon Arbor (MT3)
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin
- 1 MT3 Drift Ejector Key
- 1 Swarf / Chip Protection Guard
- 1 Heavy-Duty Transport / Storage Case
