Authorized Partner✔ Official Partner & Authorized Distributor
As an authorized distributor, we supply 100% genuine FEIN machinery, annular cutters, and accessories backed by the official manufacturer warranty and direct factory support.
■ 3-Year FEIN PLUS Warranty: Eligible for extended factory warranty coverage.
■ Made for Metal: Engineered for continuous heavy-duty industrial holemaking.
■ Factory Certified: 100% original equipment, full factory support, never grey-market.
Details

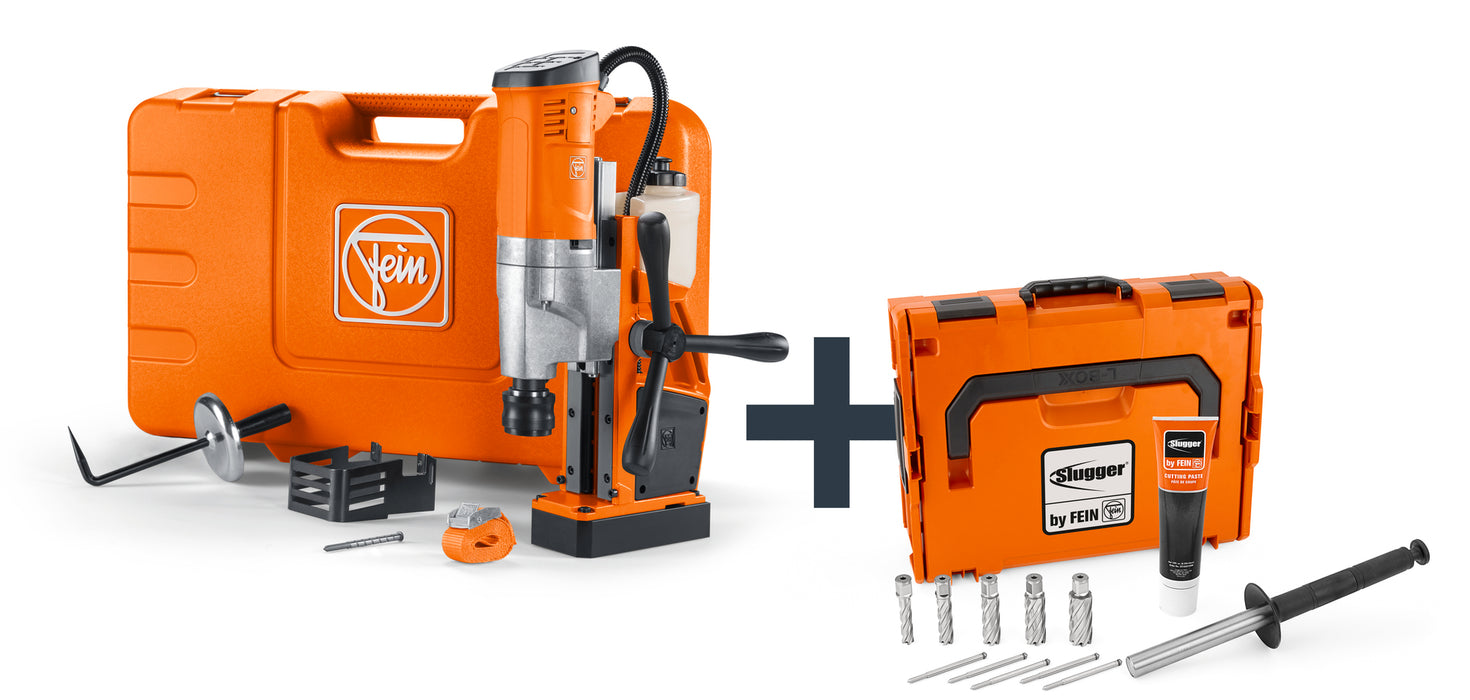

- Complete universal magnetic core drill set configured for steel construction, structural fabrication, and assembly work.
- FEIN 1,100 W high-performance motor with tacho electronics maintains constant RPM under heavy continuous loads.
- Full operational versatility: core drilling, twist drilling up to 3/4", tapping, countersinking, and reaming with forward/reverse rotation and electronic speed control.
- Morse Taper 2 (MT2) spindle mount with tool-free 3/4" Weldon / QuickIN chuck enables instant cutter swaps without wrenches.
- Generous total stroke range of 10-1/4 in (260 mm) with double drill motor guides easily accommodates long twist drills and reamers.
- Extremely wear-resistant construction with a pivoting motor cable protection sleeve to prevent snagging on structural beams.
- Convenient digital magnetic holding force indicator and motion sensor ensure safe, secure surface adhesion before the cut.
- Comprehensive structural steel bundle includes 5 HSS NOVA 2" annular cutters (64 HRC), centering pins, a Magbrush chip remover, cutting paste, and a stackable L-BOXX 136 case system.
Technical Data
| Max. Carbide Cutter Dia. | 1-3/8 in (35 mm) |
| Max. HSS Cutter Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) [up to 3 in (75 mm) optional] |
| Twist Drill Max. Dia. | 3/4 in (18 mm) |
| Tapping Max. | 9/16 in (M14) |
| Countersinking Max. Dia. | 1-3/8 in (35 mm) |
| Reaming Max. Dia. | 3/4 in (18 mm) |
| Tool Mount / Spindle Taper | MT2 |
| Cutter Arbor | 3/4 in Straight Shank (Weldon / Tool-free) |
| Power Consumption | 1,100 W |
| Power Output | 550 W |
| Full Load Speed | 130 – 520 RPM |
| Stroke Length | 5-5/16 in (135 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,248 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Drill Weight (EPTA) | 23.59 lbs (10.7 kg) |
Price Includes
- 1 JMU 137 MQW Universal Magnetic Base Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 MT2 Drift Ejector Key
- 3 Centering Pins (1/4 x 4 in / 6.35 x 100 mm)
- 1 Centering Pin (1/4 x 3-1/4 in / 6.35 x 82 mm)
- 1 Centering Pin (3/16 x 3-1/8 in / 4.75 x 80 mm)
- 1 Heavy-Duty Drill Carrying Case
- 5 HSS NOVA Annular Cutters, 2 in depth (9/16", 11/16", 13/16", 15/16", 1-1/16" dia.)
- 1 FEIN Magbrush Magnetic Chip Remover
- 1 Tube Jancy / Slugger Cutting Paste
- 1 L-BOXX 136 Accessory Storage Case
