- Heavy-duty universal 2-speed magnetic core drill engineered for high-capacity drilling up to 2-1/2 in (65 mm) in fabrication shops and job sites.
- Mechanical 2-speed gearbox with variable electronic speed control, tacho electronics, and memory function for consistent cutting RPM under load.
- Forward and reverse rotation enables core drilling, twist drilling up to 1 in, tapping up to 3/4 in (M20), countersinking, and reaming.
- Morse Taper 3 (MT3) tool mount with tool-free 3/4" straight shank arbor for fast cutter swaps and maximum tooling rigidity.
- Integrated fine adjustment feature allows 1/4" (6 mm) lateral movement and 7° angular alignment for precise hole positioning without moving the magnet.
- Digital magnetic holding force display monitors base adhesion in real time to ensure operator safety before the cut begins.
- Extra-large double motor guide rails provide a total stroke range of 12-3/8 in (315 mm) for long twist drills and deep holemaking.
- Integrated gravity-fed cooling system delivers cutting lubricant directly through the arbor to extend cutter life.
Technical Data
| Max. Core Drill Dia. | 2-1/2 in (65 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 1 in (25 mm) |
| Tapping Max. | 3/4 in (M20) |
| Countersinking Max. | 2 in (50 mm) |
| Reaming Max. Dia. | 1 in (25 mm) |
| Tool Mount / Spindle Taper | MT3 |
| Cutter Arbor | 3/4 in Weldon / Straight Shank (Tool-free) |
| Power Consumption | 1,300 W |
| Power Output | 730 W |
| Full Load Speed (Gear 1) | 120 – 240 RPM |
| Full Load Speed (Gear 2) | 260 – 520 RPM |
| Stroke Length | 5-11/16 in (145 mm) |
| Total Stroke Range | 12-3/8 in (315 mm) |
| Drill Stand Fine Adjustment | 1/4 in (6 mm) lateral / 7° angular |
| Magnetic Holding Force | 3,147 lbs (14,000 N) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 35.05 lbs (15.9 kg) |
Price Includes

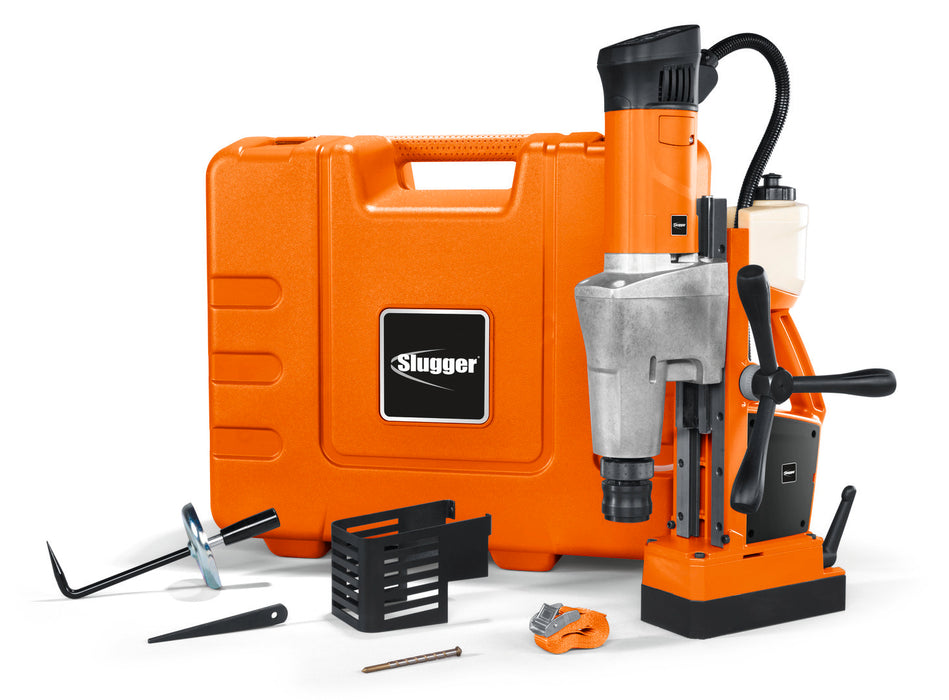

- 1 JCM 256 U Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 2 Centering / Pilot Pins
- 1 Swarf / Chip Protection Guard
- 2 Hex Keys (3/16 in / 5 mm & 1/4 in / 6 mm)
- 1 T-Handle Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
