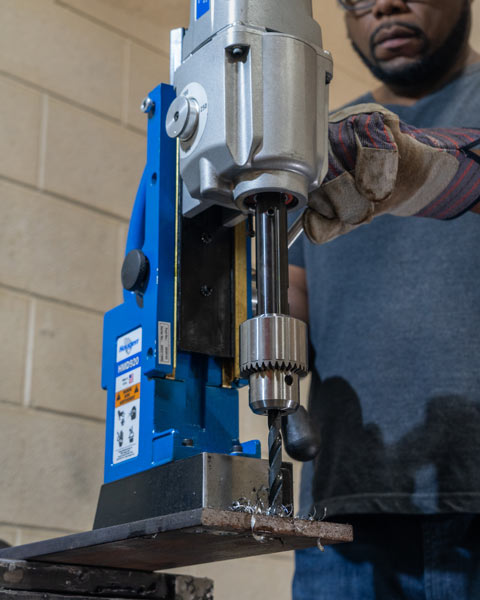

Two sizes of Drill Chucks are available for Hougen Magnetic Drills. The 1/2" Chuck fits Models HMD904, HMD905, HMD917, HMD918, HMD920. The 5/8" Chuck fits the HMD917, HMD918 & HMD920.

Required Drill Spindle Adapters

1. HMD904, 905 & 927 (Slot Drive) Part No. 08186
2. HMD917 , HMD918, HMD920 Part No. 08190
3. HMD2MT Part No. 08821
4. HMD904 & 925 (Hex Arbor) Part No. 05536
5. HMD904 & 925 (Threaded Arbor) Part No. 01829

Instructions Forms

• HMD904 / HMD905-Slot Drive
• HMD917 / 918 / 920

Drill Chucks

1. 1/2" Hougen Chuck with key Part No. 10731
2. Replacement key for 1/2" chucks Part No. 07930
3. 5/8" Hougen Chuck with key Part No. 10737
4. Replacement Key for 5/8" Chucks Part No. 07931

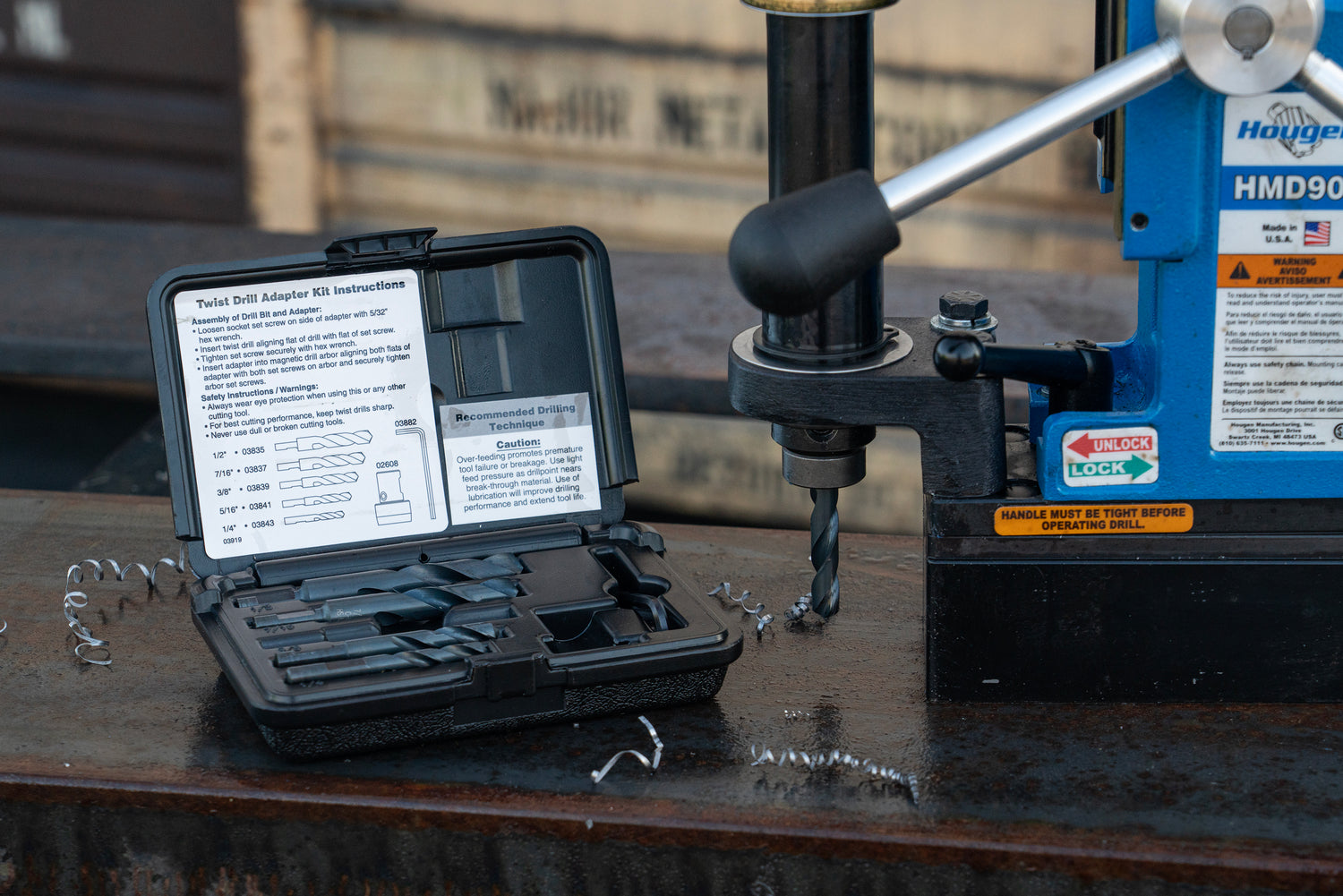

Easily installs in a Hougen Magnetic Drill* without removing drill arbor and coolant system. Adapter accepts a modified 118° twist drill with a 1/4" flatted shank that secures in adapter with a set screw. A convenient kit is available containing all items listed below.

1. Twist Drill Adapter with Set Screw Part No. 02608
2. Set Screw for Adapter Part No. 02695
3. 1/2" dia. Twist Drill Part No.03835
4. 7/16" dia. Twist Drill Part No.03837
5. 3/8" dia. Twist Drill Part No.03839
6. 5/16" dia. Twist Drill Part No.03841
7. 1/4" dia. Twist Drill Part No.03843
8. Twist Drill Adapter Kit Part No.03845

*Except Model HMD130 & HMD934

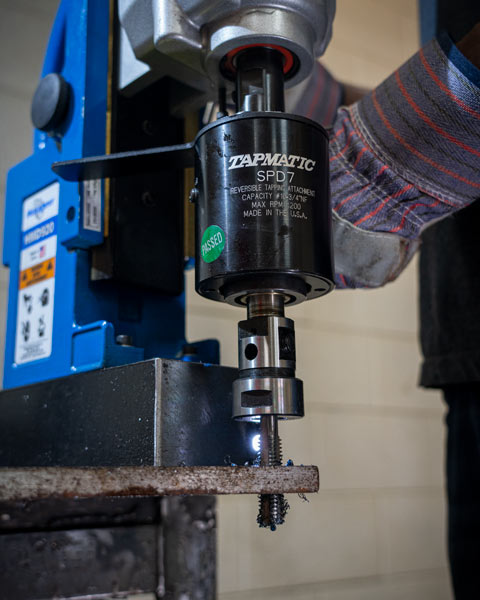

Lightweight, easy to install design incorporates a planetary gear reverse with a 1:1 ratio. Reversing speed is equal to spindle speed so in-feed and out-feed of the unit can be employed without reversing motor direction.

Tapping Kits are not recommended for use with swivel base drills.

*When using a two speed drill always tap in low gear (250 RPM)

• Instruction Sheet - HMD904 / HMD905 - Slot Drive
• Instruction Sheet - HMD917 / 918 / 920

1. Drill Model: HMD904/HMD905* Tapping Kit

• Part No. 08177 (HMD904/905 w/ Slot drive -includes 08176 adapter)
• Collet: Part No. 02495 Tap Cap. inches: #6 - 1/4"
• Collet: Part No. 02496 Tap Cap. inches: 1/4 - 1/2"

2. Drill Model: HMD917 / 918 / 920

• Part No. 08180 (HMD917/918/920 includes adapter 08179)
• Collet: Part No. 10807 Tap Cap. inches: #10 - 1/2"
• Collet: Part No. 10808 Tap Cap. inches: 1/2 - 5/8"

Designed for use with Hougen Magnetic Drills, 82° Countersink is double fluted with carbide inserts for maximum cutting action and long life. For holes from 9/16" to 15/16" diameters.

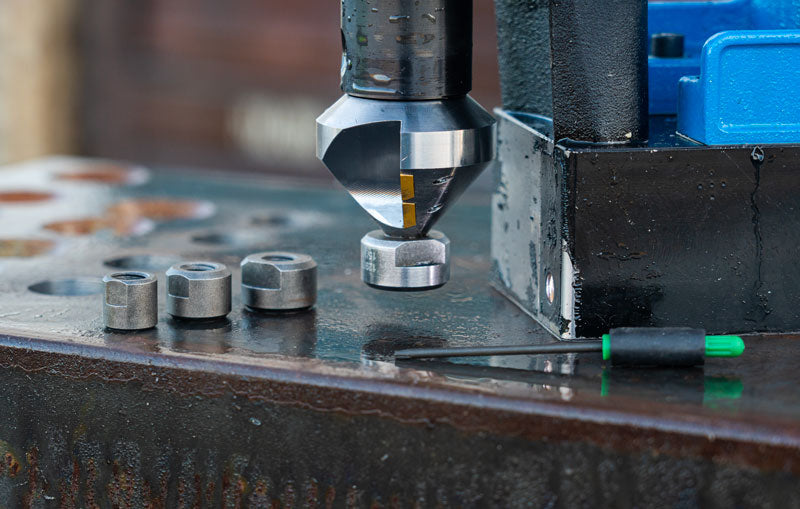

1. Part No. 12965 Description: 82° Countersink Kit includes countersink with inserts & (4) Pilots - 9/16, 11/16, 13/16 & 15/16" plus a torx wrench
2. Part No.12966 Description: 82° Countersink with Carbide Inserts (Does not include pilots)
3. Part No. 12960 Description: 9/16" diameter Pilot
4. Part No.12961 Description: 11/16" diameter Pilot
5. Part No.12962 Description: 13/16" diameter Pilot
6. Part No.12963 Description: 15/16" diameter Pilot
7. Part No.05464 Description: Replacement Screw
8. Part No. 05465 Description: Replacement Wrench
9. Part No. 05467 Description: Replacement Carbide Inserts (Box of 10)
   Use for mild steel, cast steel & malleable iron
10. Part No. 05779 Description: Replacement
    Carbide Inserts Wear Resistant (Box of 10) Use for structural steel,
    stainless steel, harder steels & non-ferrous materials

"12,000-Series" Hole Enlarging Pilots

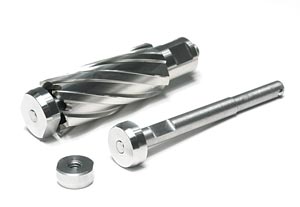

Take an existing hole and make it larger. Available in three select sizes. Replaceable nose screws on to the end. (Cutters Sold Separately - Only for use w/ 2" DOC Cutters)

1. Part No.07370 Description: Replaceable Pilot
2. Part No. 07373 Description: 11/16" Dia. Pilot Assy
3. Part No. 07372 Description: 13/16" Dia. Pilot Assy
4. Part No.073711 Description: 5/16" Dia. Pilot Assy
5. Part No.07368 Description: 11/16" Replaceable Nose
6. Part No.07367 Description: 13/16" Replaceable Nose
7. Part No.07366 Description: 15/16" replaceable Nose
8. Part No.09111 Description: Hole Enlarging Pilot Kit - Includes one of each nose and a pilot in a plastic case

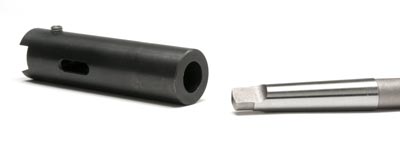

#2 Morse Taper Adapter easily fits on the HMD917 to accept morse taper shank twist drills or reamers. Will work with up to 7/8" dia twist drills or reamers with a max length of 10.25". Part No. 07448 Instruction Sheet

This Pressurized Coolant System is used for drilling when gravity feed coolant is not applicable. With the coolant bottle removed, the pressurized system easily attaches in its place. System's bottle holds two gallons of coolant.

Part No. 08446 Description: HMD934, HMD933, HMD915 - System contains Pump/Bottle, Hose, Fittings, On/Off Valve, Bracket

Part No. 24140 Description: HMD505, HMD508 System contains Pump/Bottle, Hose, Fittings, On/Off Valve, Bracket & Screw

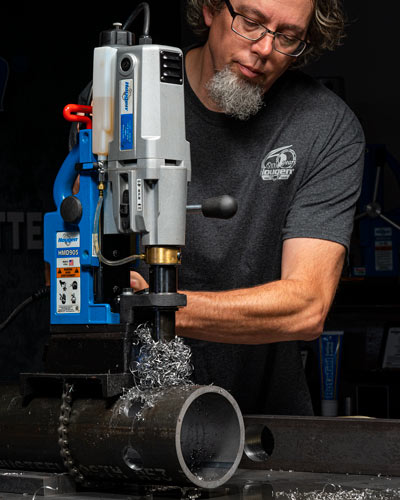

These kits let you drill pipe and tubing with a minimum 3" diameter and some convex surfaces. Kits quickly attach to your Hougen Magnetic Drill and
positive non-slip positioning assures centered hole location.

1. Part No. 02564* Description: Chain mount for models HMD904, HMD505, HMD905, HMD914, HMD917, HMD918, HMD920
2. Part No. 02582 Description: Additional chain - Sold by the foot
3. Part No. 07283 Description: Master link for additional chain

* Minimum 3" diameter, maximum 12" diameter

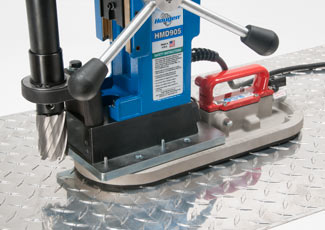

Vac-Pad works exclusively with the Model HMD904 & HMD905 on non-ferrous materials, diamond plate and materials with surface imperfections up to 3mm deep. Standard shop air provides 761 lbf surface holding power at
85kpa. Safety switch shuts off drill motor if air pressure drops. (For HMD904 & 905s with taper back magnet and non-swivel base models only) Part No. 05000

Part No. 07021

Convenient & ergonomic handle helps to carry and/or move your drill around. Fits HMD115 & HMD150.

With the feed handles of Hougen Models HMD904, HMD905 removed the Ratchet Drive is easily installed allowing use of a standard ratchet handle for drilling in confined areas. Ratchet Drive operates from either side of the drill.

• Part No. 02449 Description: Ratchet Drive for Model HMD904 & HMD905 Mag Drill, does not include Ratchet

With the RotaLoc Spindle Adapter you can take advantage of the fast changeout of RotaLoc or RotaLoc Plus Cutters. Works in all Hougen Portable Magnetic Drills or any other drill that accepts Rotabroach "12,000 Series" Cutters.

1. Part No. 17680 Description: RotaLoc Adapter plus Pilot
2. Part No. 04778 Description:Replacement Adapter
3. Part No.04780 Description: Replacement Pilot

RotaGel Cutting Lube is an extremely environmentally friendly lubricant for all types of metals and metal working applications. The blue colored gel assures thorough coverage and provides long lasting superior lubrication. Use with annular cutters, taps, drills, reamers, end mills, & more. Biodegradeable & Non-Toxic.

1. Part No. 11748 Description: Single 8oz Tube
2. Part No.11748-10 Description: Case of 10 Tubes

RotaFoam Cutting Fluid is an extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications. "Super Sticky" properties make the foam adhere to the metal and stay on longer. The blue colored foam allows you to "See Where You Spray" and also assures thorough coverage. Use with annular cutters, taps, drills, reamers, end mills, & more (Only Available in the US & Canada)

1. Part No. 11747-12 Description: Case of 12 cans
2. Part No.11747 Description: RotaFoam One Can - 1PK

When extended reach is necessary, Hougen offers 1" and 2" Arbor Extenders with a 1.310" dia. that fit arbors using "12,000-Series" Cutters.

1. Part No. 10100 Description: 1" Arbor Extender, Pilot Extender & (2) Set Screws
2. Part No. 10200 Description: 2" Arbor Extender, Pilot Extender & (2) Set Screws

To Increase versatility & productivity of your Hougen Magnetic Drillyou will be adding many of the accessories listed here. These Spindle Adapters are required for several of the accessories listed. Installation Instructions.

• Part No. 01829 Description: 1/2" Chuck Adapter for HMD904 (Old Threaded style motor spindles) Not Shown
• Part No.08597 Description: HMD933 & HMD915 - 3/4" cutter shank adapter
• Part No.05536HMD904 & HMD925 Chuck Adapter
  (Hex Drive)
• Part No. 07448 Description: #2 Morse Taper Adapter for HMD917 / HMD920
• Part No. 08176 Description: HMD904 & HMD905 Tapping Adapter (Slot Drive)
• Part No. 08179 Description: HMD917 / HMD918 / HMD920 Tapping Adapter
• Part No. 08186 Description: HMD904, HMD905 & HMD927 Chuck Adapter (Slot Drive)
• Part No. 08190 Description: HMD917 / HMD918 / HMD920 Chuck Adapter
• Part No. 08821 Description: #2 Morse Taper Chuck Adapter
• Part No.40226 Description: Tapping for HMD914
• Part No. 40341 Description: Chuck Adapter for HMD914

1. Part No. 09202 Description: HMD904 Replacement Carrying Case
2. Part No. 08077 Description: HMD905 Replacement Carrying Case
3. Part No.08080 Description: HMD917 Replacement Carrying Case
4. Part No. 08498 Description: HMD130 Replacement Carrying Case
5. Part No. 08684 Description: HMD918 Replacement Carrying Case
6. Part No. 08687 Description: HMD2MT Replacement Carrying Case

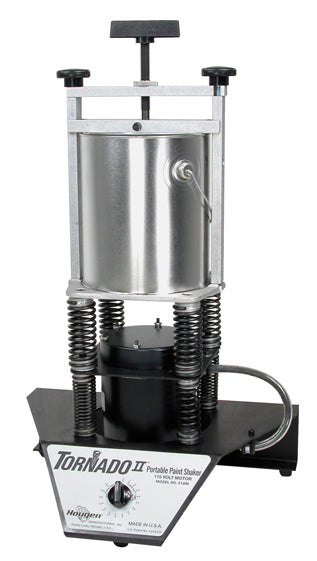

The Hougen Tornado II Portable Electric Paint Shaker is designed to mix paints completely - using three dimensions of simultaneous motion: Orbital, Side-to-Side, Up/down. It can mix gallons, quarts, pints, and aerosols. The Tornado II operates on 120 volts, weighs only 24 lbs (10.9 kg), and measures just 26" high, 15-3/8" wide, and 11-1/2" deep (660mm H x 391mm W x 292mm D) Can/Paint weight limit:11 lbs (5 kg)

Part No. 51200 - 120V

A useful accessory for:  Fabrication Shops

• Machine Tool Builders
• Plant Maintenance Departments
• Automotive Painting

Hougen Portable Paint Shaker Video
