Hougen-Ogura Electro-hydraulic Hole Punchers

Hougen-Ogura Electro-Hydraulic Hole Punchers

Electro-Hydraulic Hole Punches

Quickly punch round and oblong holes in steel. Save time and money with
Hougen-Ogura's self contained electric hole punchers.


Flat Bar

H-Steel

Angle


Channel

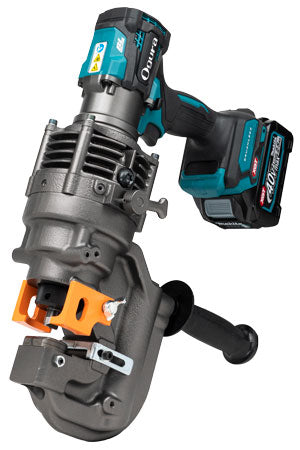

NEW - 76004PR - 40V Cordless
76004PR 40V Cordless Hole Puncher
76000PR - 18V Cordless
18V Cordless hole puncher for steel and stainless steel

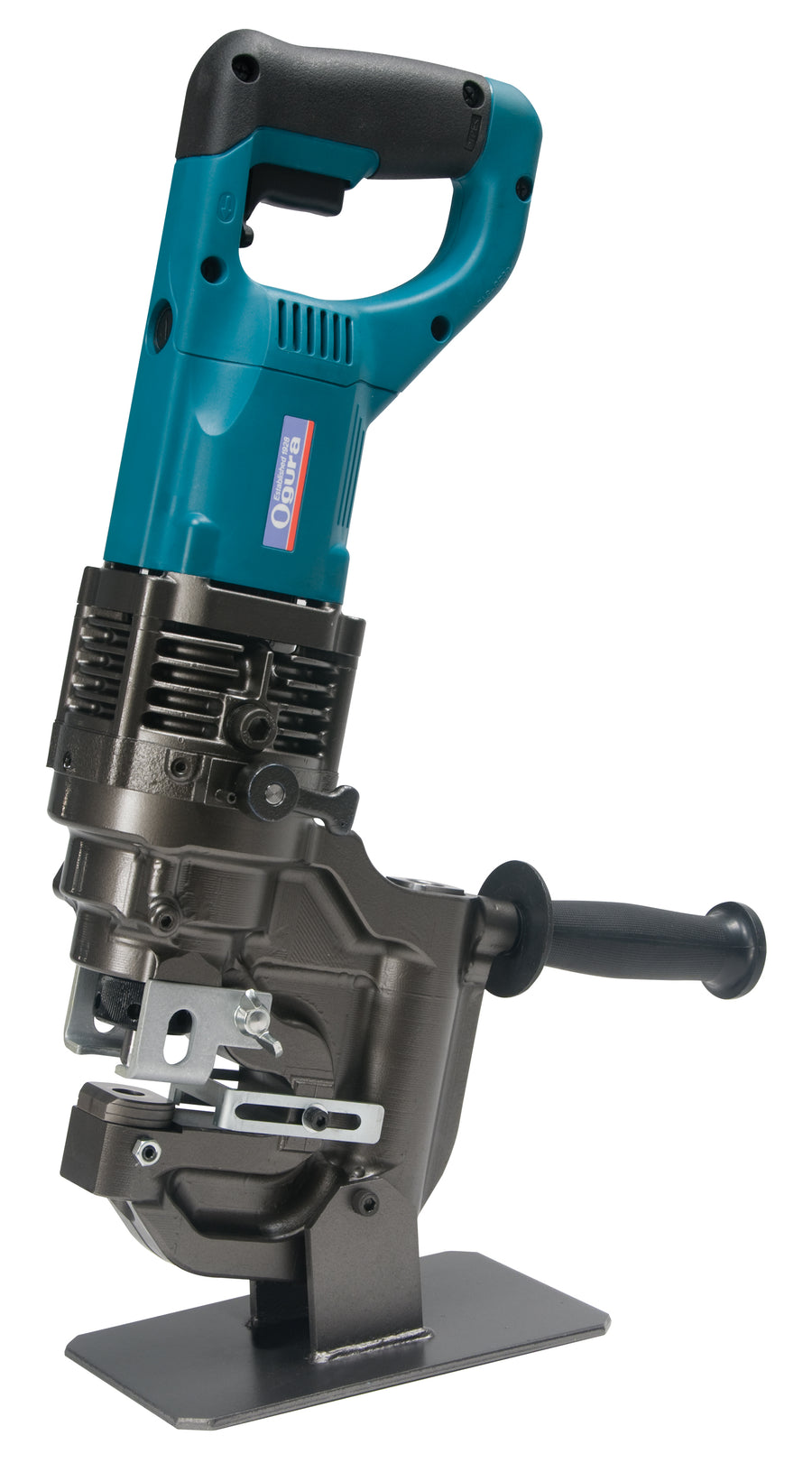

75002.5PR
75002.5PR Electro-Hydraulic Hole Puncher
Weight
24.9 lbs
(11.3 kg)
Max Dia.
25/32"
(20mm)
Pressure (tons)
16.9
Material
3/8"
(9.5mm)
Throat Depth
1-9/16"
(40mm)
Speed
2.5 sec
Weight
17.4 lbs
(7.9 kg)
Max Dia.
19/32"*
(15mm)
Pressure (tons)
11
Material
1/4"**
(6.35mm)
Throat Depth
.98"
(25mm)
Speed
4.5 sec
Weight
24.9 lbs
(11.3 kg)
Max Dia.
3/4"*
(19mm)
Pressure (tons)
10.1
Material
1/4"**
(6.4mm)
Throat Depth
2-3/8"
(60mm)
Speed
2.3 sec


75004PR
75004PR Electro-Hydraulic Hole Puncher

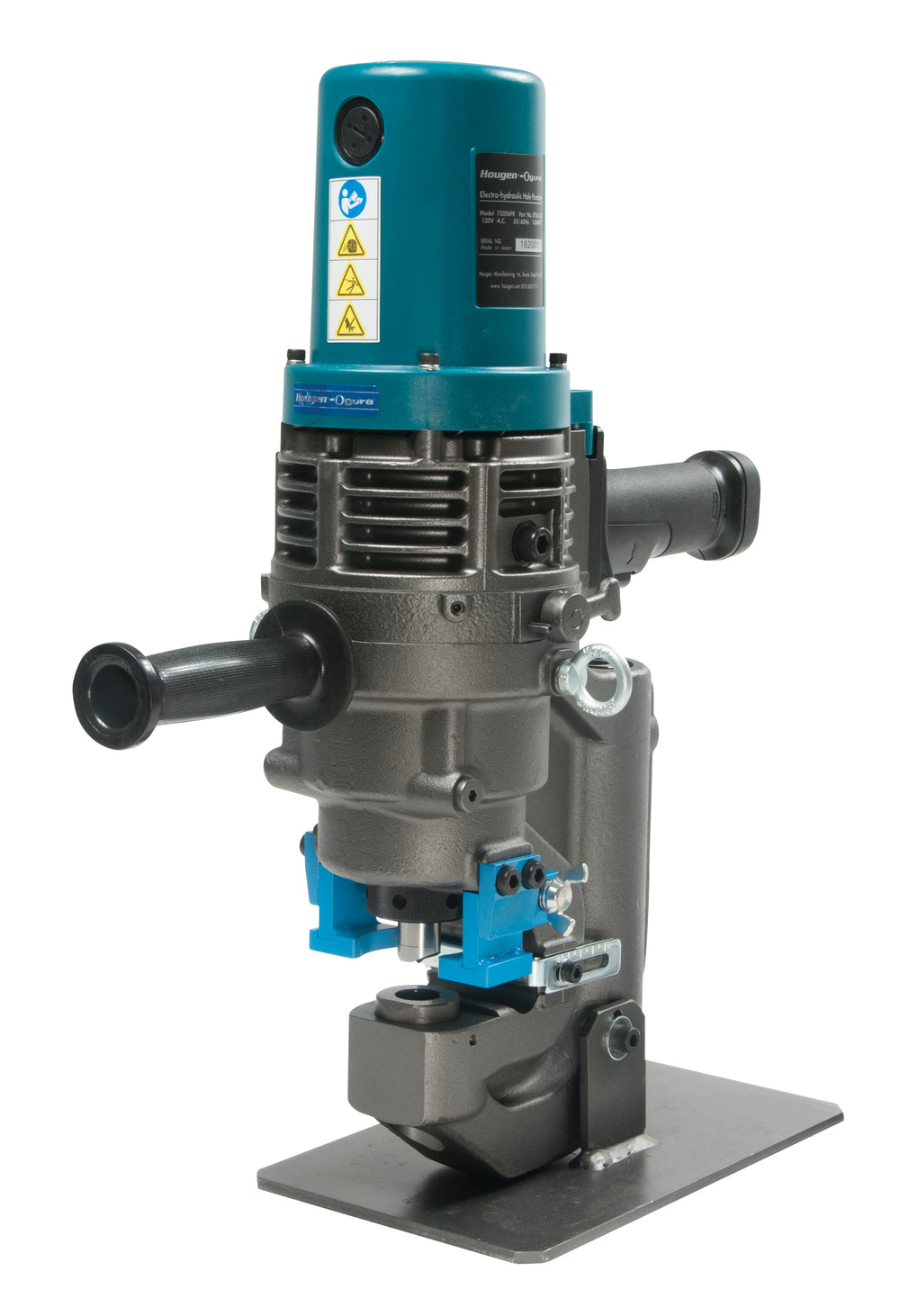

75006PR
75006PR Electro-Hydraulic Hole Puncher
Weight
24.9 lbs
(11.3 kg)
Max Dia.
25/32"
(20mm)
Pressure (tons)
16.9
Material
3/8"
(9.5mm)
Throat Depth
1-9/16"
(40mm)
Speed
2.5 sec
Weight
62.9 lbs
(28.5 kg)
Max Dia.
15/16"*
(23.8mm)
Pressure (tons)
26.9
Material
1/2"**
(12.7mm)
Throat Depth
1-31/32"
(50mm)
Speed
4 sec

* Hougen-Ogura Punches are designed for mild & structural steel, but can be used in other materials. Using in stainless or other materials significantly reduces the capacity. Consult Hougen Technical Support for questions about your particular application: (810) 635-7111





All four Hydraulic Hole Punchers are 100% self contained and operate off of electrical power. Their exclusive single body construction incorporates a high efficiency hydraulic pump in the punching head. There are no separate pumps or hoses to move or fittings to leak and maintain. Ogura/Punch-Pro's improved punch and die design requires less tonnage to punch, resulting in lighter weight units which result in less operator fatigue.

Ogura/Punch-Pro's are fast to operate because they punch clean, accurate holes in as little as 2.3 seconds with the single pull of a trigger while an auto-return mechanism automatically returns the punching rod to the starting position. The punch can also easily be jogged down for accurate hole location.

Punch round or oblong holes...round holes from 1/4" to 15/16" diameters and oblong holes 1/4" X 1/2" to 11/16" X 13/16" through up to 1/2" thick materials including Flat Bar, Channel, Angle and H-Beam.

 * See Punch Chart for maximum thickness
   ** See Punch Chart for maximum punch size
