Hougen 76006PR 40V Cordless Hole Puncher Up To 1/2″ thick- 0766102

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 0766102
Original price $ 5,500.00 - Original price $ 5,500.00
Original price
$ 5,500.00
$ 5,500.00 - $ 5,500.00
Current price $ 5,500.00

Steel Style Compatibility

Flat Bar
Flat Bar
Channel
Channel
H-Steel
H-Steel
Angle
Angle
Description +

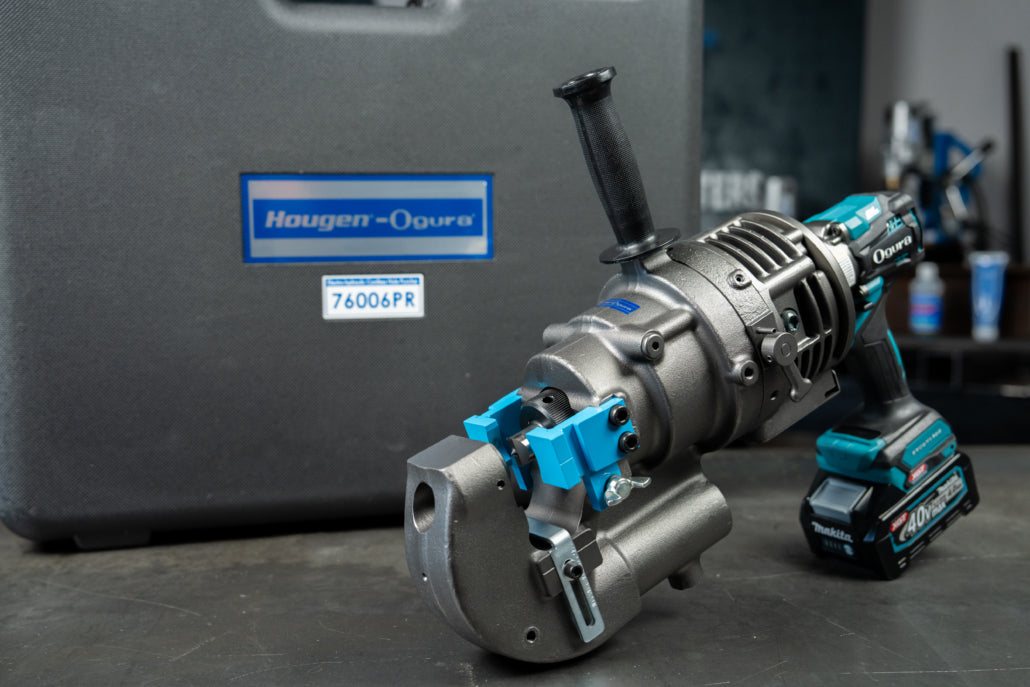

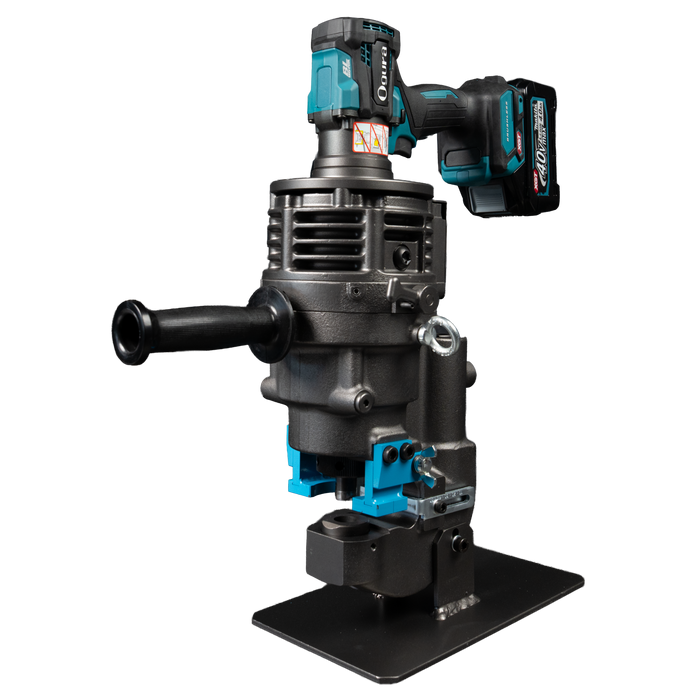

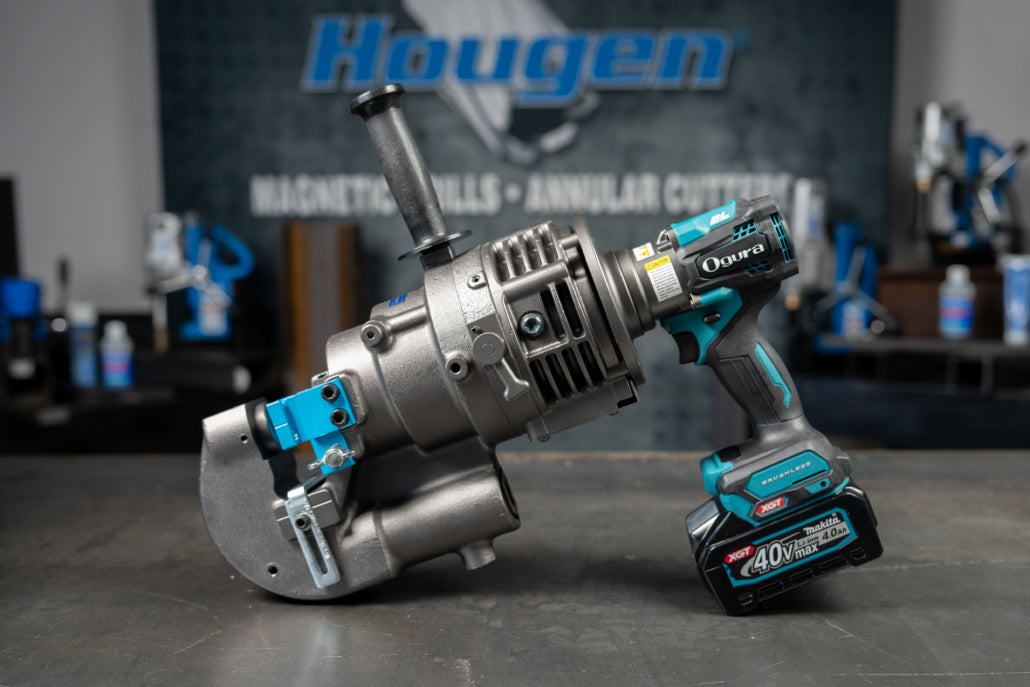

Our most powerful model of hole puncher meets the convenience and portability of battery power. With its 40 volt battery, the 76006PR generates 26.9 tons of pressure and will produce up to 15/16″ diameter round holes. In approximately 4 seconds, the 76006PR can punch through material up to 1/2″ thick. Like all Hougen-Ogura hole punchers, its single body design makes it easy to use anywhere. The operator handle rotates 360 degrees and the handle can be mounted in 2 positions in order to punch holes where you need them. Line up the punch with the speed control feature, so you know exactly where the hole will be made. The unit also has eye bolts on both sides for easy attachment of a lift assist or a counter-balance for improved ergonomics.

Includes: Carry case, eye bolts, 13/16″ punch & die and tool kit.

Specifications & Capacity +
General
Model Number 0766102
Part Number 0766102
Pressure (Tons) 26.9
Approx. Punching Speed 4
Max Punch Throat Depth 1-31/32" (50 mm)
Power Model: BL4025 2.5Ah Voltage: 36V (40V max)
Weight 52.9 lbs (24 kg)
Shipping Weight 82.6 lbs. (37.5 kg)
Round Hole Capacity
Maximum Hole Size 15/16" (23.8mm)
Maximum Thickness 1/2" (12.7mm)
Oblong Hole Capacity
Maximum Hole Size 11/16" x 13/16" (18mm x 21mm)
Maximum Thickness 1/2" (12.7 mm)
Dimensions +
Punch-Pro dimensions diagram

Click image to enlarge

A B C D E F G H I J
.57 1.97 .94 2.95 5.59 0.47 2.00
Operator Manual +
