- Heavyweight, maximum-capacity 4-speed universal magnetic core drill engineered for the most demanding fabrication and structural steel applications.
- Colossal FEIN 1,700 W high-torque motor delivers steady power for deep holemaking up to 4 in (100 mm) cutting depth.
- Mechanical 4-speed gearbox with forward/reverse rotation and electronic speed control for core drilling, twist drilling, tapping up to 1-7/16" (M36), countersinking, and reaming.
- Morse Taper 4 (MT4) spindle mount paired with a heavy 1-1/4" Weldon (Weldon 32) arbor and 3/4" Weldon adapter for broad tooling flexibility.
- Massive 11" stroke and 15-3/4" total stroke range with 3-stage manual adjustment easily clears large twist drills and extended tooling setups.
- Enormous 5,171 lbs (23,000 N) magnetic holding force with integrated torque arm for maximum clamping stability.
- Equipped with an integrated mechanical torque slip clutch, digital magnetic holding force display, motion sensor, and tilt shutoff for total operator safety.
- Pivoting motor cable protection sleeve safeguards internal electrical connections from sharp chips and harsh workshop conditions.
Technical Data
| Max. Carbide Cutter Dia. | 4-5/16 in (110 mm) |
| Max. HSS Cutter Dia. | 3-1/8 in (80 mm) |
| Max. Drilling Depth | 4 in (100 mm) |
| Twist Drill Max. Dia. | 1-9/16 in (40 mm) |
| Tapping Max. | 1-7/16 in (M36) |
| Countersinking Max. Dia. | 2-3/8 in (60 mm) |
| Reaming Max. Dia. | 1-7/16 in (36 mm) |
| Tool Mount / Spindle Taper | MT4 |
| Cutter Arbors | 1-1/4 in Weldon (Weldon 32) & 3/4 in Weldon adapter |
| Power Consumption | 1,700 W |
| Power Output | 850 W |
| Full Load Speed (Gear 1 / 2) | 60–120 / 90–170 RPM |
| Full Load Speed (Gear 3 / 4) | 150–300 / 230–430 RPM |
| Stroke Length | 11 in (280 mm) |
| Total Stroke Range | 15-3/4 in (400 mm) |
| Magnetic Holding Force | 5,171 lbs (23,000 N) |
| Magnetic Base Dimensions | 9-7/16 x 4-3/4 in (240 x 120 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 79.37 lbs (36.0 kg) |

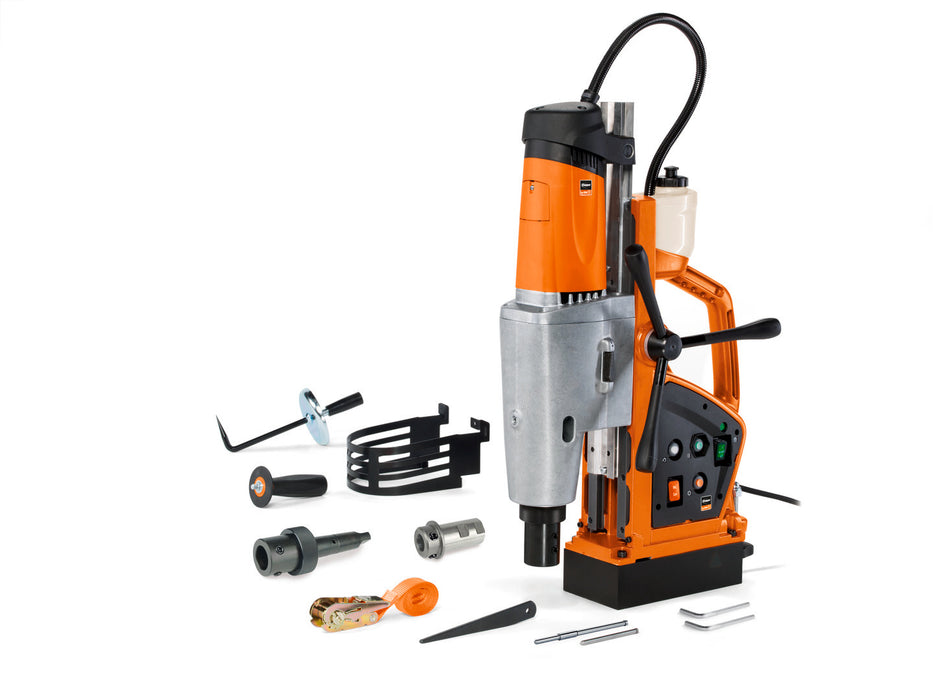

Price Includes
- 1 JMU 404 M Universal Magnetic Core Drill Unit
- 1 1-1/4 in Weldon Mounting Arbor (Weldon 32)
- 1 Adapter (1-1/4 in Weldon fitting to 3/4 in Weldon output)
- 1 Coolant Tank with Hose & Shutoff
- 1 Heavy-Duty Ratchet Safety Lashing Strap
- 1 Chip Hook
- 2 Centering / Pilot Pins (6.35 x 125 mm & 7.98 x 184 mm)
- 1 Swarf / Chip Protection Guard
- 1 MT4 Drift Ejector Key
- 2 Hex Keys (5 mm & 6 mm)
- 1 Auxiliary Transport Handle
- 1 Heavy-Duty Transport / Storage Case
