Details

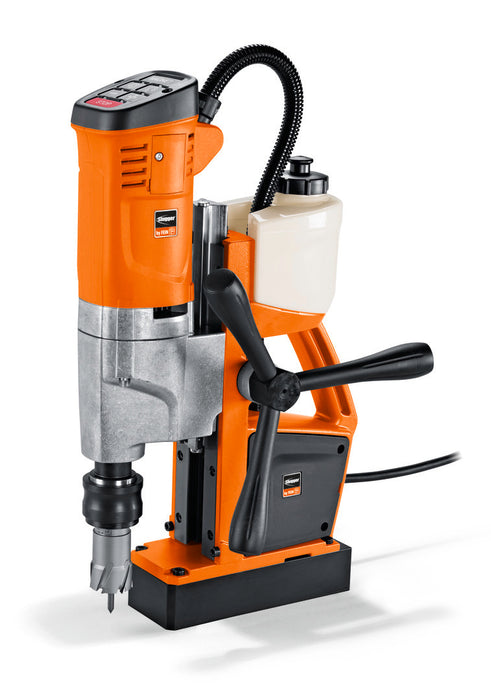

- Small, long-stroke 2-speed universal magnetic core drill with forward/reverse rotation and high-speed gearing for efficient twist drilling on the job site.
- Mechanical 2-speed gearbox with speed-controlled tacho electronics delivers optimum torque and constant cutting speeds under load.
- Full operational versatility: core drilling, twist drilling up to 5/8", tapping up to 5/8" (M16), countersinking, and reaming.
- Tool-free 3/4" straight shank / Weldon rapid change system enables instant cutter replacement without wrenches.
- Narrow 3-coil magnetic base (only 2-3/4" wide) allows secure clamping on narrow structural steel flanges and beams.
- Generous total stroke range of 10-1/4 in (260 mm) easily accommodates extra-long twist drills and deep setups.
- Pivoting motor cable protection sleeve prevents accidental snagging and line damage in harsh job-site environments.
- Digital magnetic holding force gauge, tilt sensor safety shutoff, and speed memory function for maximum operator safety and convenience.
Technical Data
| Max. Core Drill Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 5/8 in (16 mm) |
| Tapping Max. | 5/8 in (M16) |
| Countersinking Max. Dia. | 1-1/4 in (31 mm) |
| Reaming Max. Dia. | 5/8 in (16 mm) |
| Cutter Arbor | 3/4 in Weldon / Straight Shank (Tool-free) |
| Power Consumption | 1,100 W |
| Power Output | 550 W |
| Full Load Speed (Gear 1) | 130 – 520 RPM |
| Full Load Speed (Gear 2) | 400 – 1,600 RPM |
| Stroke Length | 5-5/16 in (135 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,136 lbs (9,500 N) |
| Magnetic Base Dimensions | 7-5/16 x 2-3/4 in (186 x 70 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 24.3 lbs (11.0 kg) |
Price Includes
- 1 JMU 137-2 QW Universal Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin (105 mm)
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 Heavy-Duty Transport / Storage Case
