- Specialized compact magnetic base drilling bundle configured for commercial truck frame drilling, chassis modification, and multi-layer steel fabrication.
- Includes TiN-coated (Titanium Nitride) HSS ID annular cutters engineered specifically for continuous, single-pass drilling through stacked or laminated steel plates without stopping.
- Ultra-low overall clearance height of only 6-5/8 in (169 mm) allows access into cramped truck frame channels, crossmembers, and tight structural cavities.
- Maintenance-free, high-torque 1,100 W brushless motor delivers constant cutting speed and high endurance under heavy load.
- Forward and reverse rotation paired with electronic variable speed control enables core drilling, twist drilling, countersinking, and tapping.
- Space-saving ratchet feed handle with combined 1/2" square drive and 8 mm hex socket can be operated from either side or in cramped quarters.
- High magnetic holding force of 2,248 lbs with an integrated tilt sensor safety shutoff that immediately cuts motor power if base adhesion shifts.
- Comprehensive field package includes 3 HSS ID TiN cutters, centering pins, a Magbrush chip collector, cutting paste, and a stackable dual L-BOXX carrying system.
Technical Data
| Max. HSS / Carbide Cutter Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 1-3/8 in (35 mm) |
| Twist Drill Max. Dia. | 9/16 in (14 mm) |
| Tapping Max. | 3/8 in (M10) |
| Countersinking Max. Dia. | 1-1/4 in (32 mm) |
| Cutter Holder / Arbor | 3/4 in Straight Shank (Weldon) |
| Motor Type | Brushless HighPerformance |
| Power Consumption | 1,100 W |
| Power Output | 550 W |
| Full Load Speed | 130 – 520 RPM |
| Stroke Length | 1-13/16 in (46 mm) |
| Construction Clearance Height | 6-5/8 in (169 mm) |
| Overall Length | 11-7/16 in (290 mm) |
| Magnetic Holding Force | 2,248 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Drill Weight (EPTA) | 18.74 lbs (8.5 kg) |

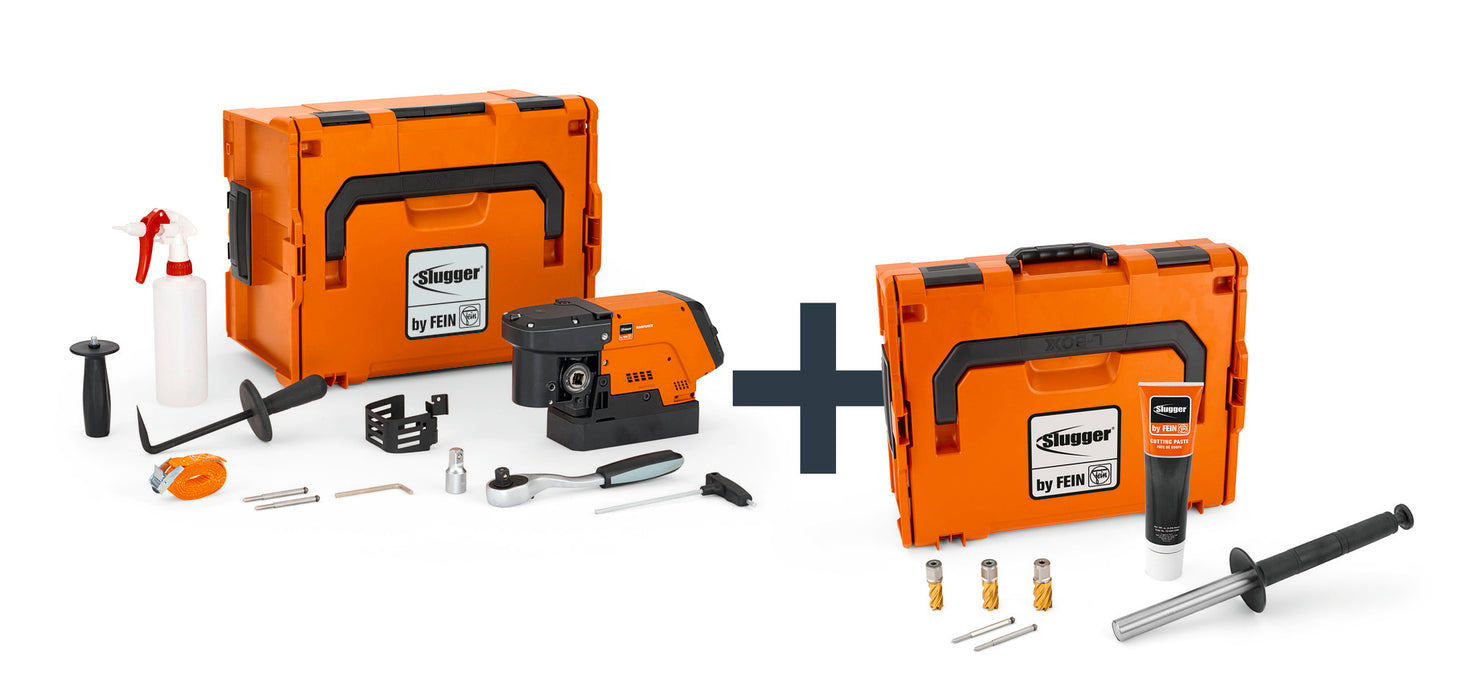

Price Includes
- 1 JMC Magforce 90 Compact Magnetic Base Drill Unit
- 1 1/2 in Ratchet Handle
- 1 1/2 in Socket Wrench Extension
- 1 Coolant Hand Pump & Hose
- 1 Safety Lashing Strap
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 Auxiliary Transport Handle
- 1 Centering Pin (3/16 x 3-1/8 in / 4.75 x 80 mm)
- 1 Centering Pin (1/4 x 3-1/4 in / 6.35 x 82 mm)
- 1 Hex Key (5 mm)
- 1 Hex Socket Key with T-Grip (5 mm)
- 1 Plastic Carrying Case (L-BOXX 238)
- 3 Truck Frame HSS ID TiN Annular Cutters, 1 in depth (5/8", 3/4", 7/8" dia.)
- 2 Additional Centering Pins (1/4 x 3-1/4 in / 6.35 x 82 mm)
- 1 FEIN Magbrush Magnetic Chip Remover
- 1 Tube Slugger Cutting Paste
- 1 L-BOXX 136 Accessory Storage Case
