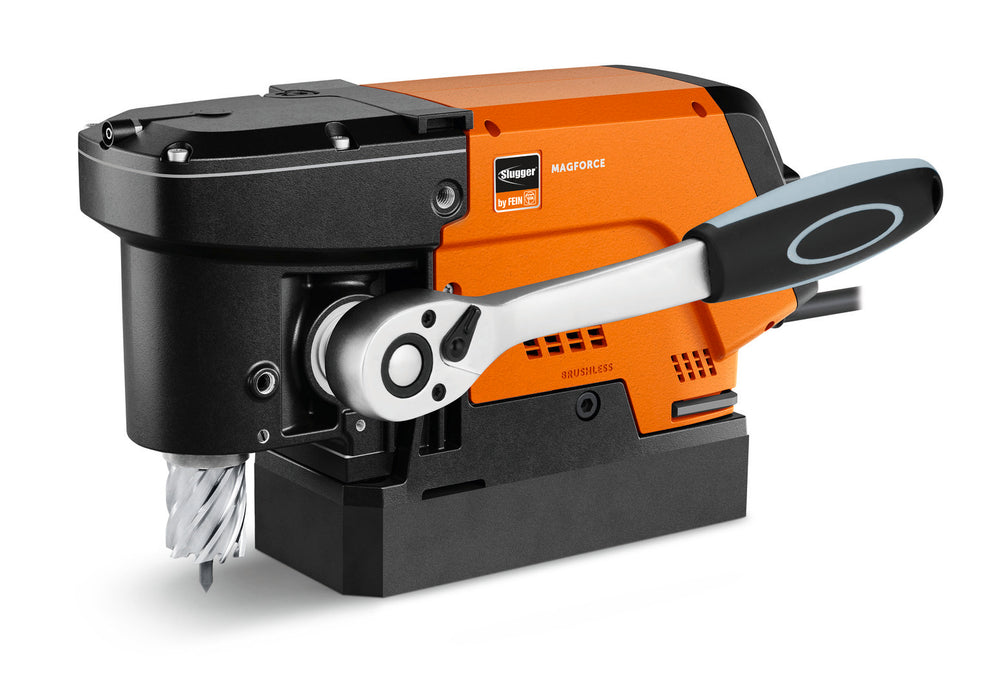

- Smallest and lightest compact magnetic base drill with forward and reverse operation, designed for confined spaces, truck chassis, and overhead work.
- Powerful, maintenance-free 1,200 W high-performance brushless motor delivers constant cutting speed and high torque under load.
- Forward/reverse rotation and electronic variable speed control allow core drilling, twist drilling up to 9/16", countersinking, and tapping up to 3/8" (M10).
- Ultra-low construction height of only 6-5/8 in (169 mm) enables access to extremely restricted workspaces where conventional drills cannot fit.
- Ratcheting feed handle with combined 1/2" square drive and 8 mm hex socket can be operated from either side in tight quarters.
- Digital magnetic holding force indicator and integrated tilt sensor safety shutoff prevent accidental tool movement or loss of adhesion.
- Integrated memory function stores selected speed, while user controls remain directly in the operator's line of sight.
- Internal cooling lubrication system with included manual hand pump delivers coolant directly through the arbor.
- Packaged in a rugged, stackable L-BOXX 238 carrying case system for organized storage and transport.
Technical Data
| Max. Core Drill Dia. (Carbide/HSS) | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 1-3/8 in (35 mm) |
| Twist Drill Max. Dia. | 9/16 in (14 mm) |
| Tapping Max. | 3/8 in (M10) |
| Countersinking Max. Dia. | 1-1/4 in (32 mm) |
| Cutter Holder / Arbor | 3/4 in Straight Shank (Weldon) |
| Motor Type | HighPerformance Brushless |
| Power Consumption | 1,200 W |
| Power Output | 680 W |
| Full Load Speed | 130 – 610 RPM |
| No Load Speed | 130 – 660 RPM |
| Stroke Length | 1-13/16 in (46 mm) |
| Construction Height | 6-5/8 in (169 mm) |
| Overall Length | 11-7/16 in (290 mm) |
| Minimum Clearance Corner-to-Center | 1-9/16 in (40 mm) |
| Magnetic Holding Force | 2,248 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 9.8 ft (3.0 m) |
| Weight (EPTA) | 18.74 lbs (8.5 kg) |
Price Includes
- 1 JMC Magforce 90 Compact Magnetic Core Drill Unit
- 1 1/2 in Ratchet Handle
- 1 1/2 in Socket Wrench Extension
- 1 Coolant Hand Pump & Hose
- 1 Safety Lashing Strap
- 1 Chip Hook
- 1 Centering / Pilot Pin (3-1/8 x 3/16 in / 80 x 4.75 mm)
- 1 Centering / Pilot Pin (3-1/4 x 1/4 in / 82 x 6.35 mm)
- 1 Swarf / Chip Protection Guard
- 1 Additional Transport Handle
- 1 Hex Key (5 mm)
- 1 T-Handle Hex Socket Key (5 mm)
- 1 Plastic Carrying Case (L-BOXX 238)
