- Rugged 1-speed Endurance magnetic base drill designed for dimensionally accurate, dependable holemaking on construction sites and in fabrication shops.
- Solid die-cast aluminum construction engineered for extreme durability under demanding job-site conditions.
- Uniform-torque motor delivers steady power and reliable performance for tough core drilling applications up to 1-1/2 in (38 mm).
- Special bore spindle guides provide exceptional concentricity and positive slug ejection after every cut.
- Internal motor cable routing protects electrical wiring from snagging or tearing on structural steel beams.
- Reversible hand feed wheel can be mounted on either side for convenient operation in tight-clearance spaces.
- Integrated gravity-fed cooling tank delivers cutting fluid directly to the center of the cut to maximize cutter life.
- Smart magnet safety circuitry prevents the motor from starting unless sufficient magnetic holding force is established.
- Integrated rigid accessory handle allows for quick, comfortable transport between workstations.
Technical Data
| Max. Core Drill Dia. | 1-1/2 in (38 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Twist Drill Max. Dia. | 1/2 in (12 mm) |
| Cutter Arbor / Holder | 3/4 in Straight Shank (Weldon) |
| Power Consumption | 1,050 W |
| Power Output | 530 W |
| Full Load Speed | 330 RPM |
| No Load Speed | 480 RPM |
| Stroke Length | 2-9/16 in (65 mm) |
| Magnetic Holding Force | 2,023 lbs (9,000 N) |
| Magnetic Base Dimensions | 6 x 4 in (152 x 102 mm) |
| Cable with Plug | 12.5 ft (3.8 m) |
| Weight (EPTA) | 31.75 lbs (14.4 kg) |

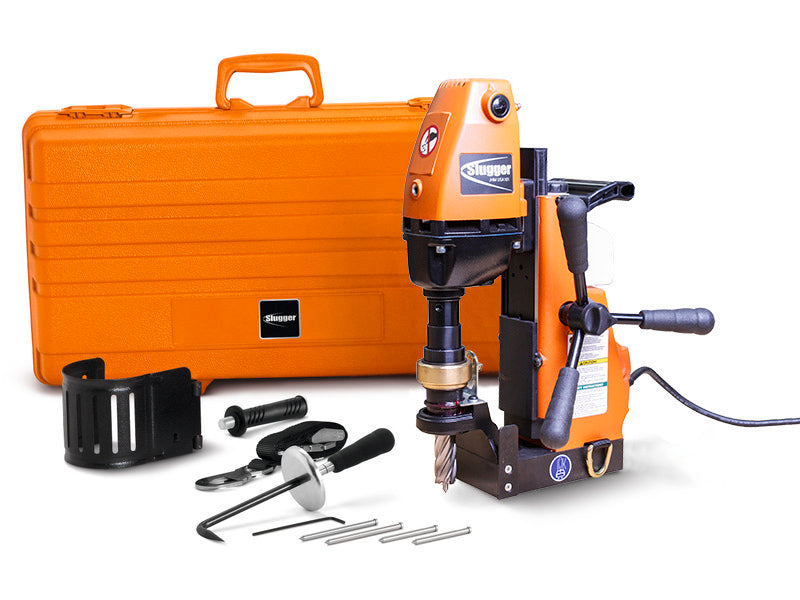

Price Includes
- 1 JHM USA 101 Magnetic Core Drill Unit
- 1 Coolant Tank with Hose
- 1 Carrying / Transport Handle
- 1 Safety Lashing Strap
- 1 Chip Hook
- 4 Centering / Pilot Pins
- 1 Swarf / Chip Contact Guard
- 1 Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
