Details

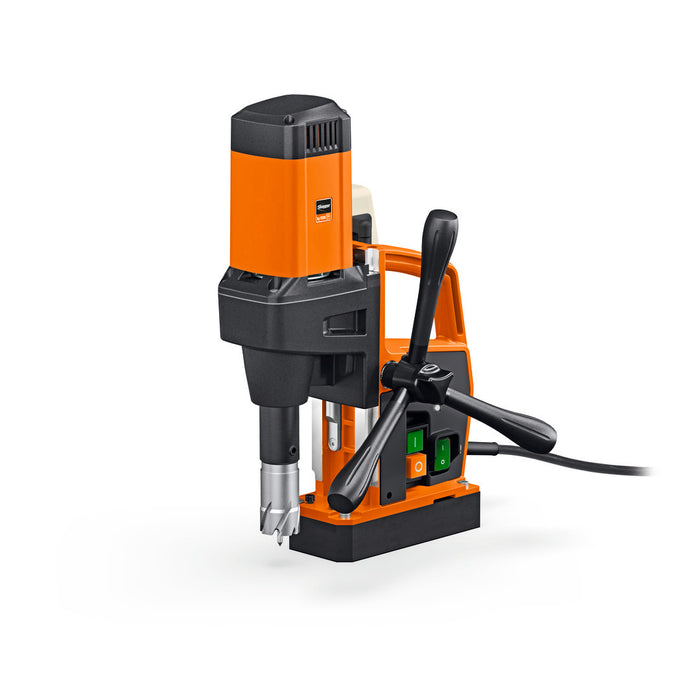

- Small and extremely lightweight 1-speed Endurance magnetic core drill engineered for tough job-site use and tight-clearance drilling.
- Extra-durable gearbox design engineered for up to 400 hours of operation time for uncompromising service life.
- High-torque 1,200 W FEIN high-performance motor delivers uniform, dependable cutting speed for core drilling up to 1-1/4 in (32 mm).
- Internal motor cable routing protects electrical wiring from snagging, tearing, and abrasive structural steel edges.
- Convenient digital magnetic holding force indicator and integrated motion sensor provide maximum operator safety.
- Internal through-spindle cooling system delivers cutting lubricant directly to the cutting edge for extended tool life.
- Hand feed wheel can be mounted on either side without tools for optimal clearance in cramped workspaces.
- Highly visible, intuitive switch layout ensures safe, error-free operation even when wearing heavy work gloves.
Technical Data
| Max. Carbide Cutter Dia. | 1-1/4 in (32 mm) |
| Max. HSS Cutter Dia. | 1-1/4 in (32 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Cutter Arbor | 3/4 in Straight Shank / Weldon |
| Power Consumption | 1,200 W |
| Power Output | 770 W |
| Full Load Speed | 450 RPM |
| No Load Speed | 700 RPM |
| Stroke Length | 3-9/16 in (90 mm) |
| Magnetic Holding Force | 2,248 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 9.8 ft (3.0 m) |
| Weight (EPTA) | 23.81 lbs (10.8 kg) |
Price Includes
- 1 JME ShortSlugger II Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
