Details

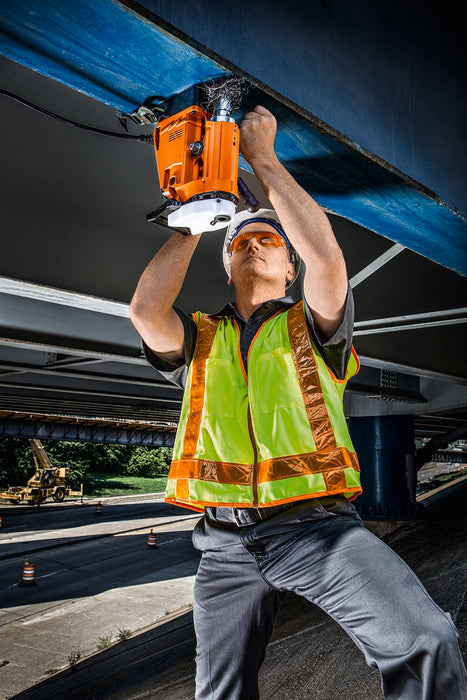

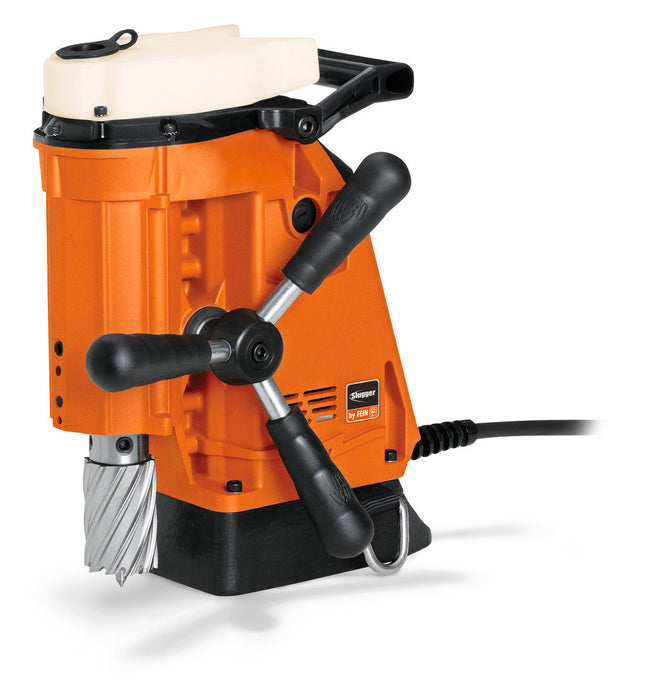

- Extremely compact magnetic base drill with an outstanding power-to-weight ratio, engineered for work at heights and in confined spaces.
- Stationary motor design with an internal quill-feed spindle eliminates external slide maintenance and provides positive slug ejection.
- Solid die-cast aluminum single-block construction delivers extreme rigidity and durability in harsh job-site environments.
- Fixed overall machine height ensures clearance remains constant throughout the entire drilling stroke.
- Reversible hand feed wheel can be mounted on either side for tight-quarter or awkward drilling positions.
- Internal motor cable routing prevents snagging, pinching, or cutting on sharp steel edges.
- Integrated gravity-fed cooling system supplies cutting lubricant directly through the arbor to maximize cutter life.
- High-adhesion magnetic base provides secure clamping stability on structural steel flanges and plates.
Technical Data
| Max. Cutter Dia. | 1-5/8 in (40 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Cutter Holder / Arbor | 3/4 in Straight Shank (Weldon) |
| Feed System | Stationary motor / Quill feed |
| Power Consumption | 1,100 W |
| Power Output | 610 W |
| Full Load Speed | 280 RPM |
| No Load Speed | 450 RPM |
| Stroke Length | 2-9/16 in (65 mm) |
| Magnetic Holding Force | 2,023 lbs (9,000 N) |
| Magnetic Base Dimensions | 6 x 4 in (152 x 102 mm) |
| Cable with Plug | 12.5 ft (3.8 m) |
| Weight (EPTA) | 28.88 lbs (13.1 kg) |
Price Includes
- 1 JHM Magforce Magnetic Core Drill Unit
- 1 Coolant Tank with Hose
- 1 Safety Lashing Strap
- 1 Chip Hook
- 4 Centering / Pilot Pins
- 1 Swarf / Chip Protection Guard
- 1 Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
