Details
- Lightweight, durable 1-speed endurance magnetic core drill engineered for dependable structural steel fabrication and job-site use.
- Uniform operational performance with a high-torque motor designed for continuous, economical annular cutting.
- Internal motor wiring routing eliminates exterior cable loops to protect electrical lines from snagging or tearing on steel edges.
- Integrated gravity cooling lubrication unit delivers cutting fluid directly through the center of the cut.
- Reversible hand feed wheel can be repositioned tool-free on either side for tight-space clearance.
- High magnetic holding force equipped with a tilt sensor safety shutoff that immediately stops the motor if magnetic contact breaks.
Technical Data
| Max. Core Drill Dia. | 1-3/8 in (35 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Tool Arbor | 3/4 in Weldon shank |
| Power Consumption | 1,100 W |
| Power Output | 550 W |
| Full Load Speed | 450 RPM |
| No Load Speed | 680 RPM |
| Stroke Length | 2-9/16 in (65 mm) |
| Magnetic Holding Force | 2,025 lbs (9,000 N) |
| Magnetic Base Dimensions | 6-5/16 x 4 in (160 x 102 mm) |
| Cable with Plug | 12.5 ft (3.8 m) |
| Weight (EPTA) | 23.15 lbs (10.5 kg) |

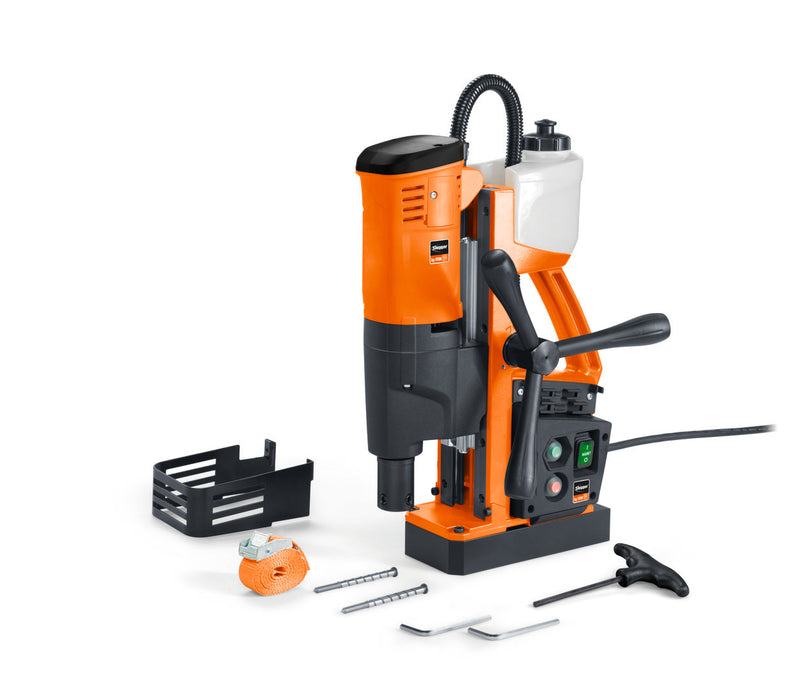

Price Includes
- 1 JME Holemaker III Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin
- 1 Swarf / Chip Protection Guard
- 1 Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
