Details

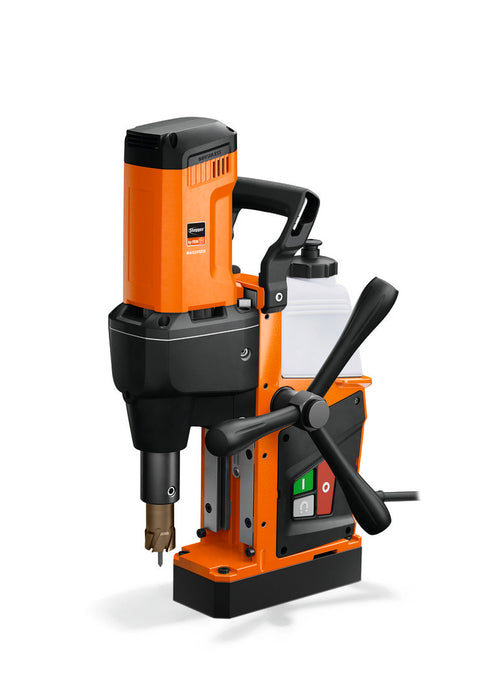

- High-speed 1-speed Endurance magnetic core drill optimized specifically for carbide (TCT) annular cutters to achieve significantly faster drilling progress and maximum productivity.
- Specially tuned high-speed gearing delivers optimal cutting speed for carbide cutters, drastically reducing cutting times compared to conventional magnetic drills.
- Powerful, wear-resistant 1,200 W motor with constant speed electronics maintains high cutting speeds and uniform feed rates under load.
- Morse-free, direct 3/4" Weldon arbor ensures high concentricity, rigid cutter seating, and reliable slug ejection.
- Internal motor cable routing protects electrical wiring from snagging, tearing, or abrasive steel chips.
- Digital magnetic holding force indicator and integrated tilt sensor safety shutoff provide secure adhesion and stop the motor immediately if the tool shifts.
- Integrated through-spindle cooling system delivers lubricant directly to the cutting edge to optimize cutter life.
- Tool-free reversible feed hand wheel can be mounted on either side for convenient operation in tight workspaces.
Technical Data
| Max. Carbide Cutter Dia. | 1-1/2 in (38 mm) |
| Max. Drilling Depth | 2 in (50 mm) |
| Cutter Arbor / Holder | 3/4 in Straight Shank (Weldon) |
| Power Consumption | 1,200 W |
| Power Output | 680 W |
| Full Load Speed | 620 RPM |
| No Load Speed | 720 RPM |
| Stroke Length | 3-9/16 in (90 mm) |
| Total Stroke Range | 10-1/4 in (260 mm) |
| Magnetic Holding Force | 2,248 lbs (10,000 N) |
| Magnetic Base Dimensions | 6-7/8 x 3-1/8 in (175 x 80 mm) |
| Cable with Plug | 13.1 ft (4.0 m) |
| Weight (EPTA) | 23.81 lbs (10.8 kg) |
Price Includes
- 1 JME MagSpeed 150 Magnetic Core Drill Unit
- 1 Coolant Tank with Hose & Brass Shutoff
- 1 Safety Lashing Strap
- 1 Centering / Pilot Pin
- 1 Chip Hook
- 1 Swarf / Chip Protection Guard
- 1 Hex Key (5 mm)
- 1 Heavy-Duty Transport / Storage Case
