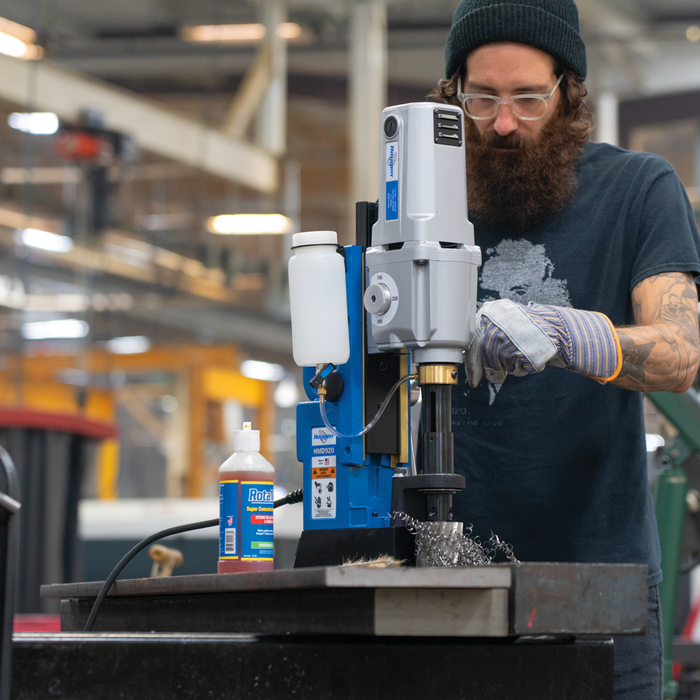

Hougen HMD920 Magnetic Drill Fabricators Kit Fractional 3" Depth of Cut 3 Speed Coolant - 115V 0920105

Hougen HMD920 Magnetic Drill Fabricators Kit Fractional 3" Depth of Cut 3 Speed Coolant - 115V 0920105

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 0920105
by Hougen Mfg.
Save 10% Save 10%
$ 2,621.50
$ 2,621.50 - $ 2,621.50
$ 2,621.50
$ 2,359.00
$ 2,359.00 - $ 2,359.00
$ 2,359.00

Overview

HMD920 Magnetic Drill

Our most powerful three speed mag drill for heavy duty fabrication.
  • Powerful high torque Hougen motor and gears
  • Three speed gear box - 250 / 450 / 700 RPM
  • Pilot light for low light conditions and greater hole accuracy
  • Hidden motor cord
  • Two stage magnet. Engages full power only when motor is turned on which increases magnet life
  • Positive slug ejection
  • Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more...
  • Feed handles quickly change from side to side
  • Lift detector safety system
  • Gravity fed coolant bottle
  • Carrying case included (09495)
  • Two year warranty
Made in USA

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.
Two Year Warranty

Two Year Warranty

American Made & Backed by the Company Who Built It
Pilot Light

Pilot Light

Pilot light for low light conditions and greater hole accuracy
Two Stage Magnet

Two Stage Magnet

Improved holding power on thin steel
Slot Drive Arbor

Slot Drive Arbor

Industrial slot drive arbor provides secure cutter engagement and reliable power transfer.
Wrench Holder

Wrench Holder

Integrated wrench holder keeps adjustment tools secure and easily accessible.
Heavy Duty Housing

Heavy Duty Housing

Durable industrial housing protects internal components in demanding jobsite environments.
Coolant Bottle

Coolant Bottle

Gravity-fed coolant bottle improves cutter life and drilling performance.
Three speed gear box - 250 / 450 / 700 RPM

Three speed gear box - 250 / 450 / 700 RPM

Three-speed gearbox allows optimal torque and cutting speed for different hole sizes.
Electrical / Motor
Electrical System
115V, 50/60 Hz - 13.5A, 1553W
Motor RPM
250/450/700 RPM
Voltage
115V
Amperage
12.5A
Capacity
Annular Cutter Capacity
7/16" - 2-3/8" (12mm - 60mm)
Twist Drill Capacity
3/4" w/ drill chuck
Tapping Capacity
3/4"-16 UNF w/ tapping unit
Depth of Cut
3" (76mm)
Cutter / Mount
12,000-Series" & Copperhead™ cutters, 3/4" (19mm) shank
Dimensions
Dimensions
22-13/16" H x 7-11/16" W x 11-3/4" L (579mm H x 195mm W x 299mm L)
Base Dimensions
3-1/8" W x 6-9/16" L (79mm W x 167mm L)
Magnet Dimensions
3-1/2" W x 7-3/4" L (89mm W x 197mm L)
Magnet Performance
Magnet Dead Lift (1" Plate)
DEAD LIFT: (1" / 25mm Plate): 2385 lb. (1082 kg)
Magnet Breakaway (1" Plate)
DRILL POINT BREAKAWAY: (1" / 25mm Plate): 1290 lb. (585 kg)
Magnet Dead Lift (3/8" Plate)
DEAD LIFT: (3/8" / 9.5mm Plate): 1635 lb. (742 kg)
Magnet Breakaway (3/8" Plate)
DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): 825 lb. (374 kg)
Weight
Weight
49 lb. (22.2 kg)
Shipping Weight
66 lb. (29.9 kg)
  • 0920102 HMD920 115V Coolant/Swivel
  • 2″ depth “12,000-Series’ cutter Kit (12002)
  • 1/2” drill Chuck and adapter for using twist drills
  • Carrying case
  • Pint of coolant
  • 10730 Safety chain
  • 10565 1/8" Hex wrench for Gib Adjustment
  • 04558 Feed handles (3)
  • 04532 Feed handle knobs (3)
  • 40222 Set screw for cutter installation (2)
  • 24166 7/32" Hex wrench
  • Steel Fabrication
  • Building & Construction
  • Bridge Rebuilding
  • Mining
  • Ship Building
  • Truck, RV & Special Vehicle Build
  • Pipeline, Offshore & Oil Fields
  • Welding Shops
  • Power Utilities
  • Railroad Industries
  • Maintenance Facilities
  • Mobile Repair Shops
  • Machinery Riggers
