Hougen Tapping Kits & Required Collets for Tap Units
| Hougen Tapping Kits | |
 |
Lightweight, easy to install design incorporates a planetary gear reverse with a 1:1 ratio. Reversing speed is equal to spindle speed so in-feed and out-feed of the unit can be employed without reversing motor direction.
*When using a two speed drill always tap in low gear (250 RPM)
Instruction Sheet - HMD904 / HMD905 - Slot Drive
Instruction Sheet - HMD917
Instruction Sheet - HMD904-Hex Style
Instruction Sheet - HMD914
| Tapping Kits | |
| Part No. | Description |
| 08177 | For use with HMD904 & HMD905 (Slot Drive-includes adapter 08176) 1/2" Max. |
| 02463 | For use with HMD904 (Threaded Drive) 1/2" Max. |
| 05457 | For use with HMD904 - 1/2" Max. (Hex Drive-Includes 07339 adapter) |

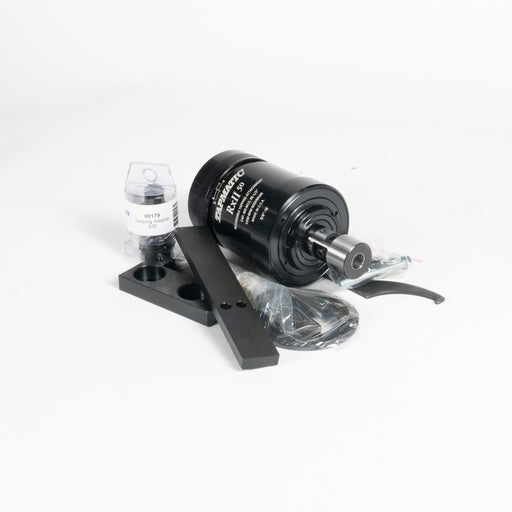

| 08180 | For use with HMD917 - 3/4" Max. (Includes adapter 08179) |
| 10937 | For use with HMD914 - 3/4" Max |
| Required Collets for Tap Units: | |
| For HMD904 & HMD905 (1/2" Max.) | |
| Collets: 02495 for #6 thru 1/4" tap 02496 for 1/4" thru 1/2" tap |
|
| For HMD914 & HMD917 (3/4" Max.) | |
| Collets: 10807 for #10 thru 1/2" tap 10808 for 1/2" thru 3/4" tap |
|
| Incorporates a planetary gear reverse with a 1:1 ratio. Reversing speed is equal to spindle speed so in-feed and out-feed of the unit can be employed without reversing motor direction. |
