Hougen HMD904 Permanent Magnet Magnetic Drill - Coolant - 115V - 0904122

Hougen HMD904 Permanent Magnet Magnetic Drill - Coolant - 115V - 0904122

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 0904122
by Hougen Mfg.
Save 10% Save 10%
$ 2,245.93
$ 2,245.93 - $ 2,245.93
$ 2,245.93
$ 2,021.00
$ 2,021.00 - $ 2,021.00
$ 2,021.00

Overview

HMD904 Magnetic Drill

The drill of choice for fabrication. Lightweight, powerful, & versatile.
  • Hidden motor cord
  • Increased safety with less maintenance
  • Lower overall height
  • Pilot light for low light conditions and greater hole accuracy
  • Slot drive arbor system with positive slug ejection
  • Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
  • Lift detector safety system
  • Gravity fed coolant system
  • Carrying case included (09202)
  • Two year warranty
Made in USA

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.

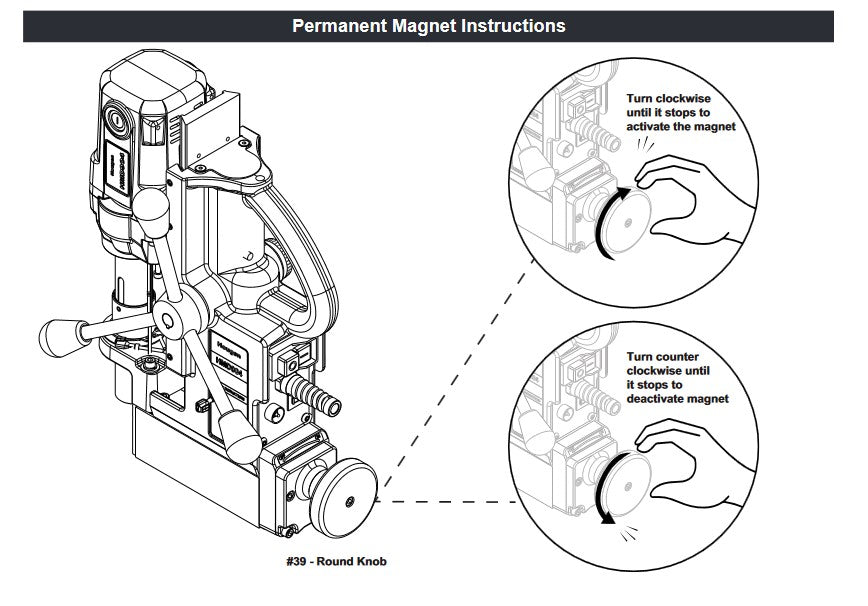

Permanent Magnet

Permanent Magnet

The Permanent Magnet HMD904 is built upon the same platform that fabricator’s around the world know and trust. The permanent magnet requires no electricity to operate and turns on and off with an easy to rotate knob.
Pilot Light

Pilot Light

Pilot light for low light conditions and greater hole accuracy
Heavy Duty Housing

Heavy Duty Housing

Durable industrial housing protects internal components in demanding jobsite environments.
Coolant Bottle

Coolant Bottle

Gravity-fed coolant bottle improves cutter life and drilling performance.
Slot Drive Arbor

Slot Drive Arbor

Industrial slot drive arbor provides secure cutter engagement and reliable power transfer.
Two Year Warranty

Two Year Warranty

American Made & Backed by the Company Who Built It
Electrical / Motor
Electrical System
115V, 50/60 Hz - 9A, 1035W
Motor RPM
450
Voltage
115V
Amperage
9A
Capacity
Annular Cutter Capacity
7/16" - 1-1/2" (12mm - 38mm)
Twist Drill Capacity
1/2" w/ drill chuck
Tapping Capacity
1/2" w/ tapping unit
Depth of Cut
2" (50mm)
Cutter / Mount
"12,000-Series" & Copperhead™ cutters, 3/4" (19mm) shank
Dimensions
Dimensions
18" H x 7-3/4" W x 11-5/8" L (457mm H x 197mm W x 295mm L)
Base Dimensions
3-1/8" W x 6-9/16" L (79mm W x 167mm L)
Magnet Dimensions
3-1/8" W x 6-9/16" L (79mm W x 167mm L)
Magnet Performance
Magnet Dead Lift (1" Plate)
DEAD LIFT: (1" / 25mm Plate): 1750 lb. (794 kg)
Magnet Breakaway (1" Plate)
DRILL POINT BREAKAWAY: (1" / 25mm Plate): 995 lb. (452 kg)
Magnet Dead Lift (3/8" Plate)
DEAD LIFT: (3/8" / 9.5mm Plate): 1310 lb. (594 kg)
Magnet Breakaway (3/8" Plate)
DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): 710 lb. (322 kg)
Weight
Weight
36 lb. (16.3 kg)
Shipping Weight
50.1 lb. (22.7 kg)
  • 0904122 HMD904 115V Coolant / Permanent Magnet
  • Carrying case
  • Pint of coolant
  • 10730 Safety chain
  • 10565 1/8" Hex wrench for Gib Adjustment
  • 04558 Feed handles (3)
  • 04532 Feed handle knobs (3)
  • 40222 Set screw for cutter installation (2)
  • 24166 7/32" Hex wrench
  • Steel Fabrication
  • Building & Construction
  • Bridge Rebuilding
  • Mining
  • Ship Building
  • Truck, RV & Special Vehicle Build
  • Pipeline, Offshore & Oil Fields
  • Welding Shops
  • Power Utilities
  • Railroad Industries
  • Maintenance Facilities
  • Mobile Repair Shops
  • Machinery Riggers
