Hougen HMD904 Magnetic Drill - 115V 0904101

Hougen HMD904 Magnetic Drill - 115V 0904101

IN STOCK — READY TO SHIP Authorized Hougen Distributor Made in the USA Fast Shipping Genuine Hougen Parts Expert Tool Support

SKU 0904101

by Hougen Mfg.

Save 10%

$ 1,230.50

$ 1,230.50 - $ 1,230.50

$ 1,230.50

$ 1,107.00

$ 1,107.00 - $ 1,107.00

$ 1,107.00

Overview

HMD904 Magnetic Drill

The drill of choice for fabrication. Lightweight, powerful, & versatile.

Hidden motor cord
Increased safety with less maintenance
Lower overall height
Pilot light for low light conditions and greater hole accuracy
Two stage magnet. Engages full power only when motor is turned on which increases magnet life
Slot drive arbor system with positive slug ejection
Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more...
Lift detector safety system
Gravity fed coolant system

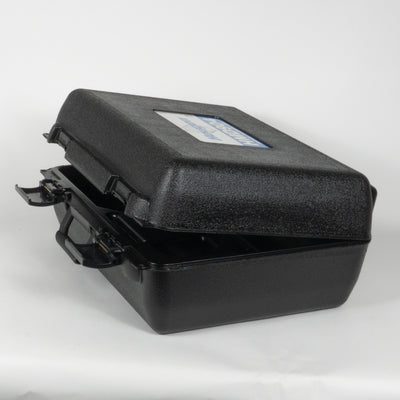

Carrying case included (09202)
Two year warranty

Made in USA

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.

Two Year Warranty

Two Year Warranty

American Made & Backed by the Company Who Built It

Pilot Light

Pilot Light

Pilot light for low light conditions and greater hole accuracy

Two Stage Magnet

Two Stage Magnet

Improved holding power on thin steel

Slot Drive Arbor

Slot Drive Arbor

Industrial slot drive arbor provides secure cutter engagement and reliable power transfer.

Wrench Holder

Wrench Holder

Integrated wrench holder keeps adjustment tools secure and easily accessible.

Heavy Duty Housing

Heavy Duty Housing

Durable industrial housing protects internal components in demanding jobsite environments.

Specifications +

Electrical / Motor

Electrical System

115V, 50/60 Hz - 9A, 1035W

Motor RPM

450

Voltage

115V

Amperage

9A

Capacity

Annular Cutter Capacity

7/16" - 1-1/2" (12mm - 38mm)

Twist Drill Capacity

1/2" w/ drill chuck

Tapping Capacity

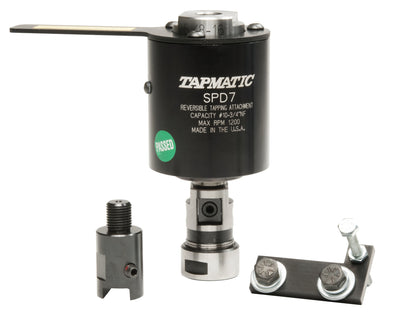

1/2" w/ tapping unit

Depth of Cut

2" (50mm)

Cutter / Mount

"12,000-Series" & Copperhead™ cutters, 3/4" (19mm) shank

Dimensions

Dimensions

18" H x 7-3/4" W x 11-5/8" L (457mm H x 197mm W x 295mm L)

Base Dimensions

3-1/8" W x 6-9/16" L (79mm W x 167mm L)

Magnet Dimensions

3-1/8" W x 6-9/16" L (79mm W x 167mm L)

Magnet Performance

Magnet Dead Lift (1" Plate)

DEAD LIFT: (1" / 25mm Plate): 1750 lb. (794 kg)

Magnet Breakaway (1" Plate)

DRILL POINT BREAKAWAY: (1" / 25mm Plate): 995 lb. (452 kg)

Magnet Dead Lift (3/8" Plate)

DEAD LIFT: (3/8" / 9.5mm Plate): 1310 lb. (594 kg)

Magnet Breakaway (3/8" Plate)

DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): 710 lb. (322 kg)

Weight

Weight

30 lb. (13.6 kg)

Shipping Weight

44.1 lb. (20 kg)

Included Items +

0904101 HMD904 115V
Carrying case
Pint of coolant
10730 Safety chain
10565 1/8" Hex wrench for Gib Adjustment
04558 Feed handles (3)
04532 Feed handle knobs (3)
40222 Set screw for cutter installation (2)
24166 7/32" Hex wrench

Where is a Mag Drill Used? +

Steel Fabrication
Building & Construction
Bridge Rebuilding
Mining
Ship Building
Truck, RV & Special Vehicle Build
Pipeline, Offshore & Oil Fields
Welding Shops
Power Utilities
Railroad Industries
Maintenance Facilities
Mobile Repair Shops
Machinery Riggers

Compatible Cutters +

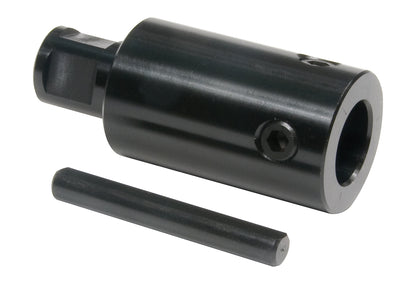

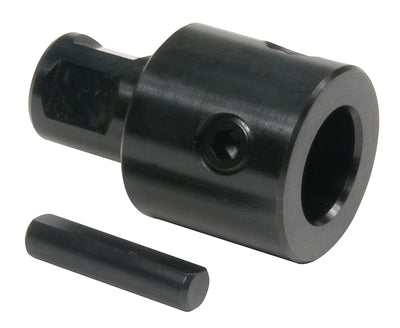

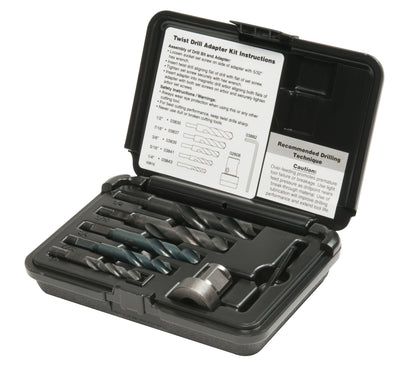

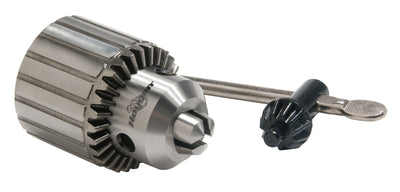

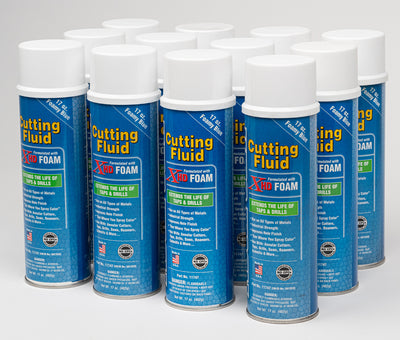

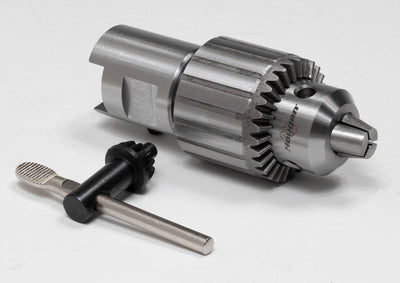

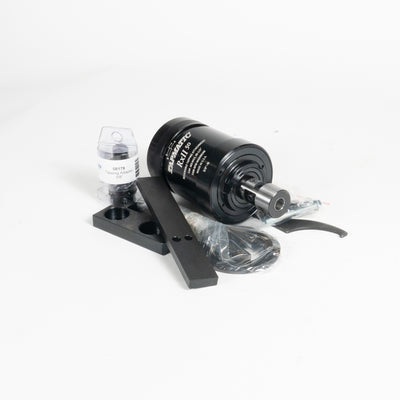

Accessories +
