Name: Hougen HMD918 Mag Drill 6" Depth of Cut - 115V 0918102
Brand: Hougen Mfg.
SKU: 0918102
Price: 2913.0 USD
Availability: InStock

Hougen HMD918 Mag Drill 6" Depth of Cut - 115V 0918102

Hougen HMD918 Mag Drill 6" Depth of Cut - 115V 0918102

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support

SKU 0918102

by Hougen Mfg.

Save 10%

$ 3,236.75

$ 3,236.75 - $ 3,236.75

$ 3,236.75

$ 2,913.00

$ 2,913.00 - $ 2,913.00

$ 2,913.00

Quantity

Overview

HMD918 Magnetic Drill

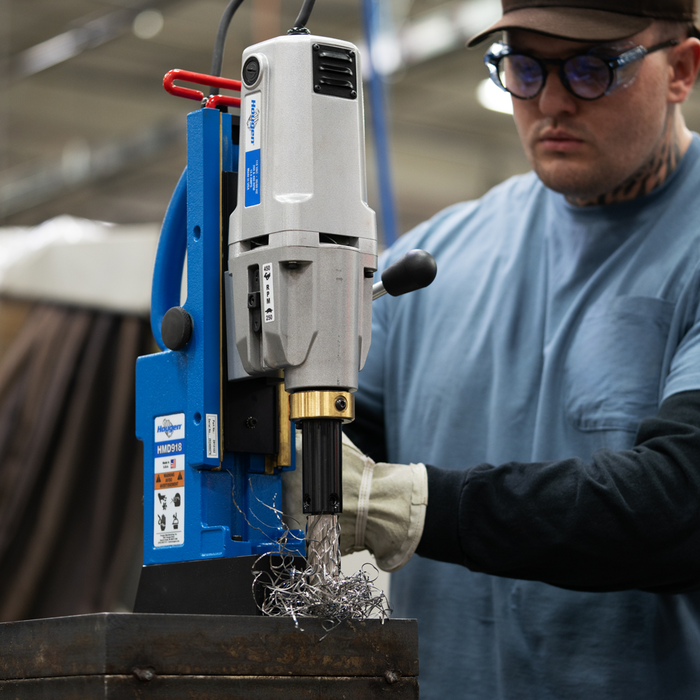

Drill holes up to 6″ deep, multiple stacked plates or extend your hole reach capability

Powerful high torque Hougen motor and gears
Two speed gear box - 250 & 450 RPM
Pilot light for low light conditions and greater hole accuracy
Pressurized coolant system for increased productivity & better coolant flow for deep hole drilling
Includes extra arbor system for positive slug ejection when drilling holes up to 3" deep
Two stage magnet. Engages full power only when motor is turned on which increases magnet life
Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, #2 Morse Taper Adapter, and more...
Feed handles quickly change from side to side
Lift detector safety system
Carrying case included (08684)
Two year warranty

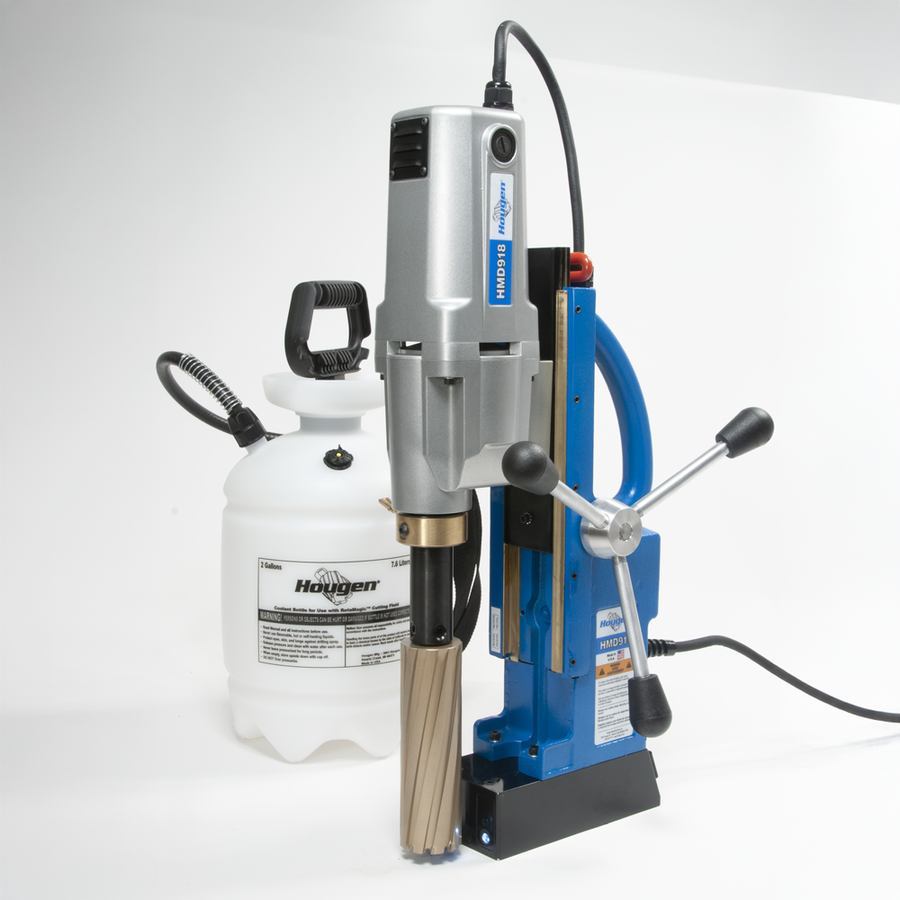

Pressurized Coolant System Included

The Pressurized Coolant System is used for deep hole and extended drilling times. Works on select mag drills.[Learn More]

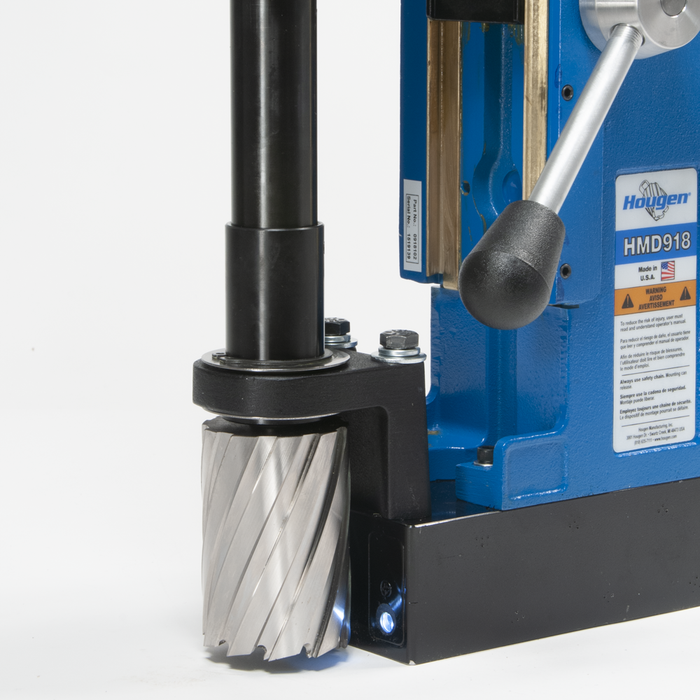

First Arbor

One arbor has a Front Support Bracket that includes positive slug ejection and it used for everyday holemaking drilling up to 2-3/8″ dia x 3″ deep holes.

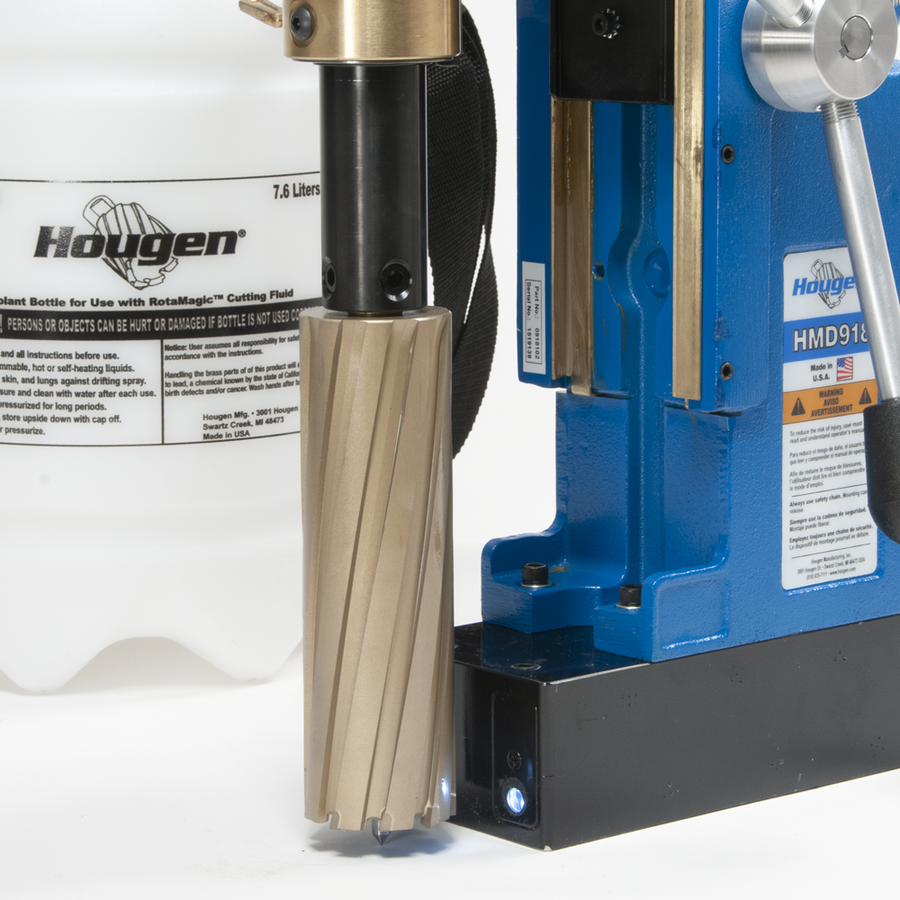

Second Arbor

A second short arbor is used for cutters 4″ and 6″ in length.

Two Year Warranty

American Made & Backed by the Company Who Built It

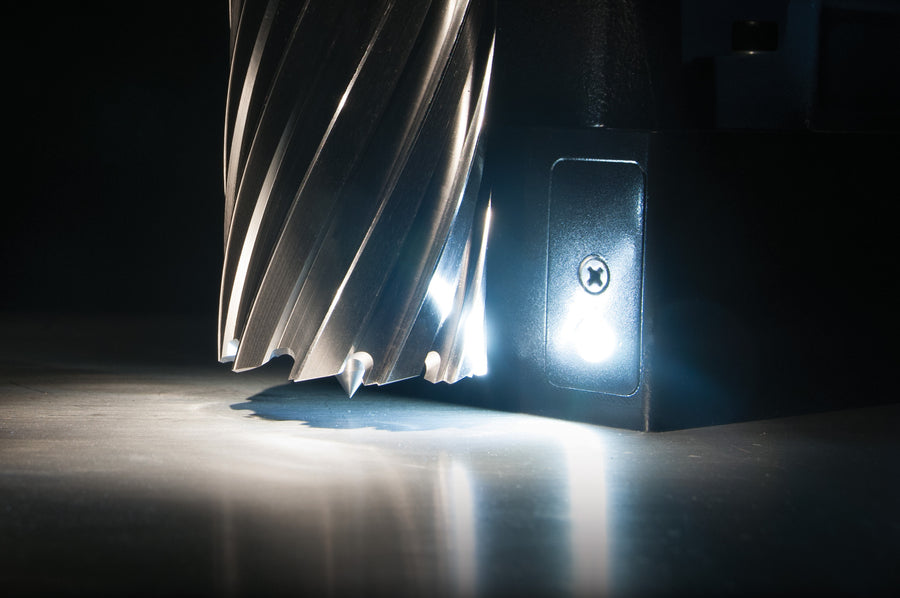

Pilot Light

Pilot light for low light conditions and greater hole accuracy

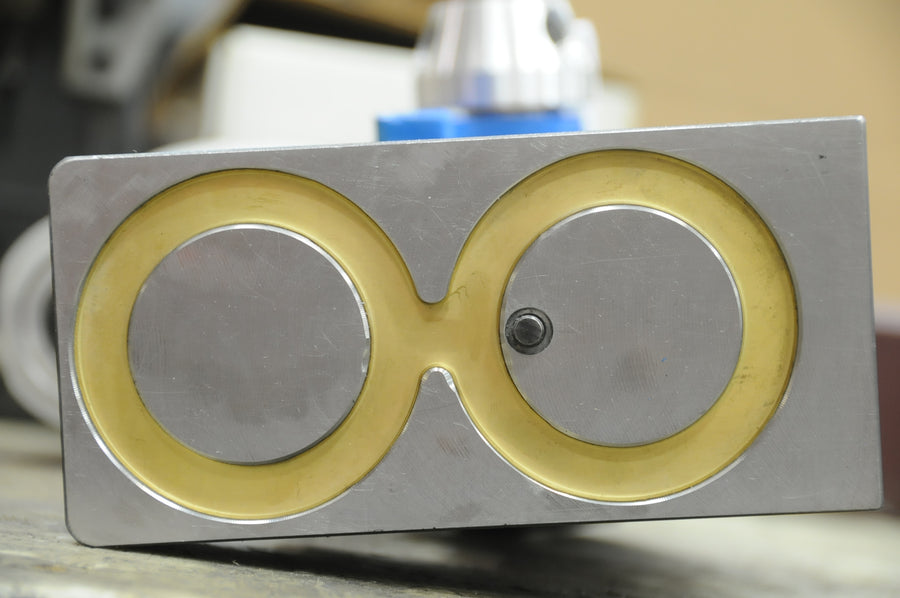

Two Stage Magnet

Improved holding power on thin steel

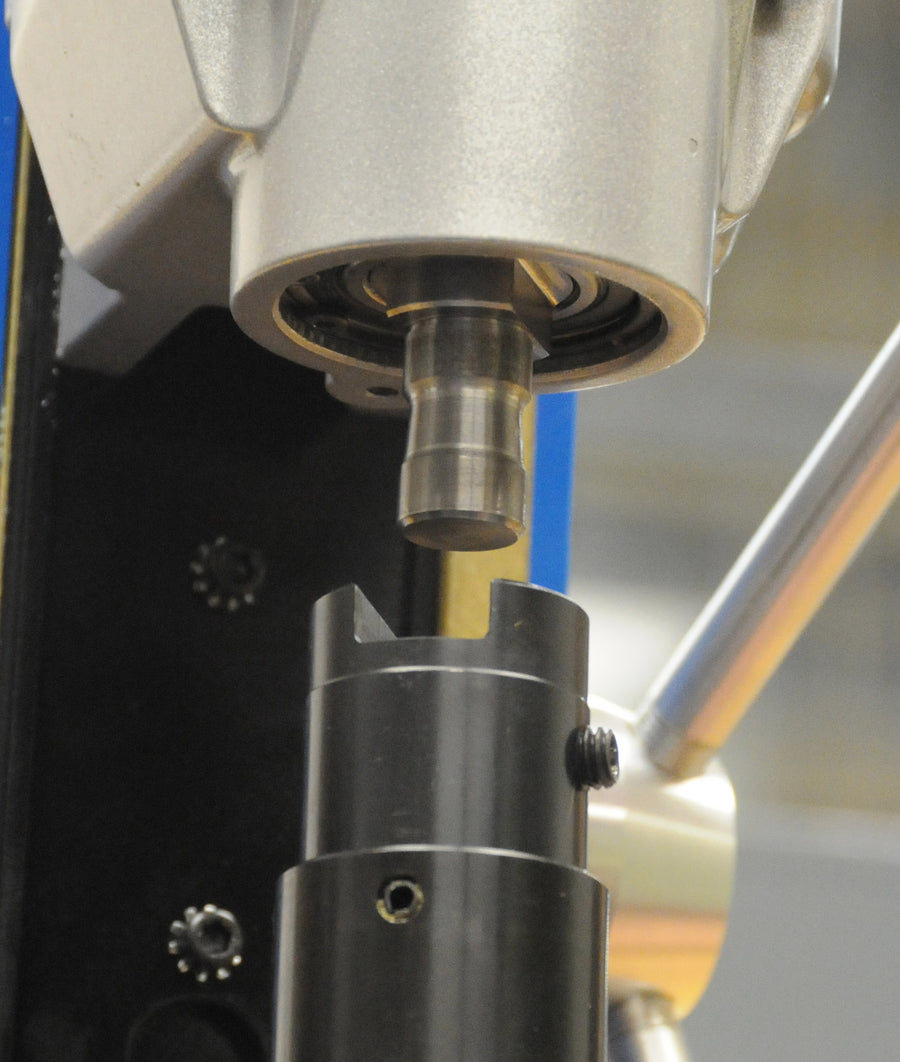

Slot Drive Arbor

Industrial slot drive arbor provides secure cutter engagement and reliable power transfer.

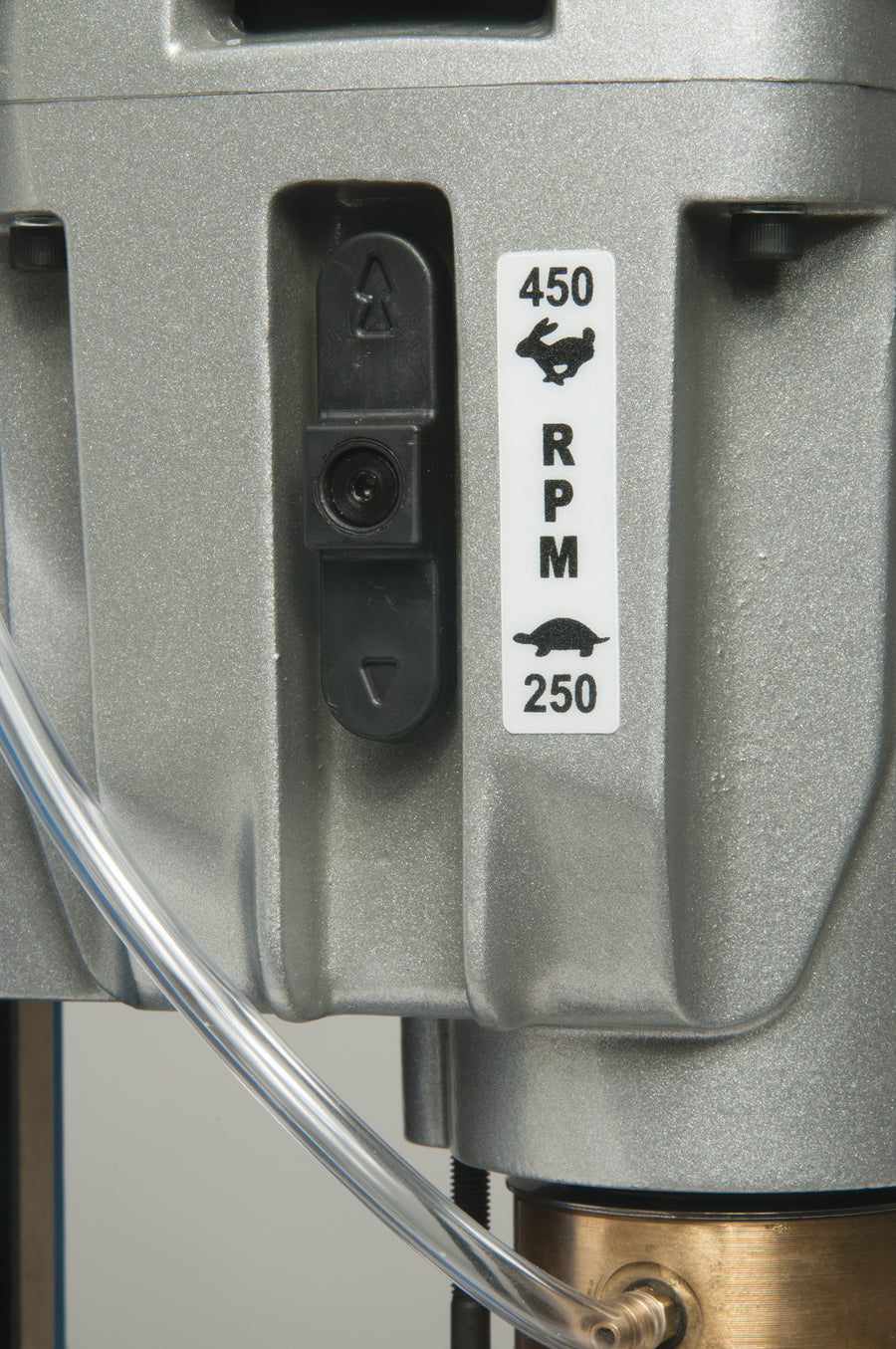

Gear Shift

Two-speed gearbox allows optimal torque and cutting speed for different hole sizes.

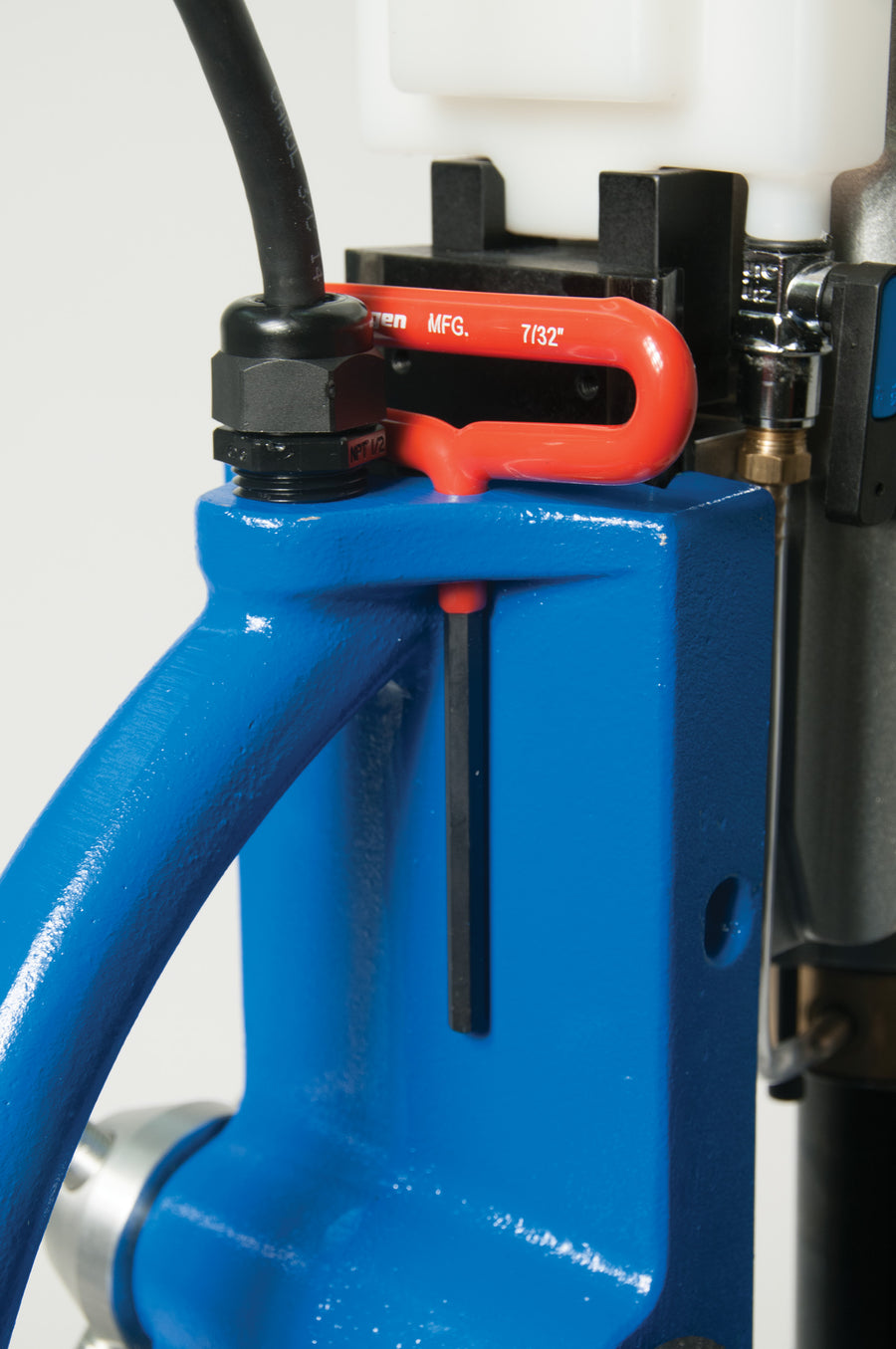

Wrench Holder

Integrated wrench holder keeps adjustment tools secure and easily accessible.

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.

Specifications +

Electrical / Motor

Electrical System

115V, 50/60 Hz - 13.5A, 1553W

Motor RPM

250/450 RPM

Voltage

115V

Amperage

12.5A

Capacity

Annular Cutter Capacity

Up to 3" DOC • 7/16" - 2-3/8" (w/ Arbor & FSB) Up to 6" DOC • 13/16" - 1-1/4" (21mm - 32mm) “12,000-Series” • 13/16" - 2" (21mm - 50mm) Copperhead Carbide

Depth of Cut

6" (152mm)

Cutter / Mount

"12,000-Series" & Copperhead™ cutters, 3/4" shank

Stroke

6.80" (172.7mm

Dimensions

26-5/16" H x 7-1/2" W x 12-13/16" L (668mm H x 191mm W x 325mm L)

Base Dimensions

3-1/2" W x 7-3/4" L (89mm W x 197mm L)

Magnet Dimensions

3-1/2" W x 7-3/4" L (89mm W x 197mm L)

Magnet Performance

Magnet Dead Lift (1" Plate)

DEAD LIFT: (1" / 25mm Plate): 2385 lb. (1082 kg)

Magnet Breakaway (1" Plate)

DRILL POINT BREAKAWAY: (1" / 25mm Plate): 1195 lb. (542 kg)

Magnet Dead Lift (3/8" Plate)

DEAD LIFT: (3/8" / 9.5mm Plate): 1635 lb. (742 kg)

Magnet Breakaway (3/8" Plate)

DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): 765 lb. (347 kg)

Weight

44.2 lb. (20.1 kg)

Shipping Weight

68 lb. (30.8 kg)

Detailed Features +

The One Drill to Tackle the Widest Variety of Jobs Around the Fab Shop

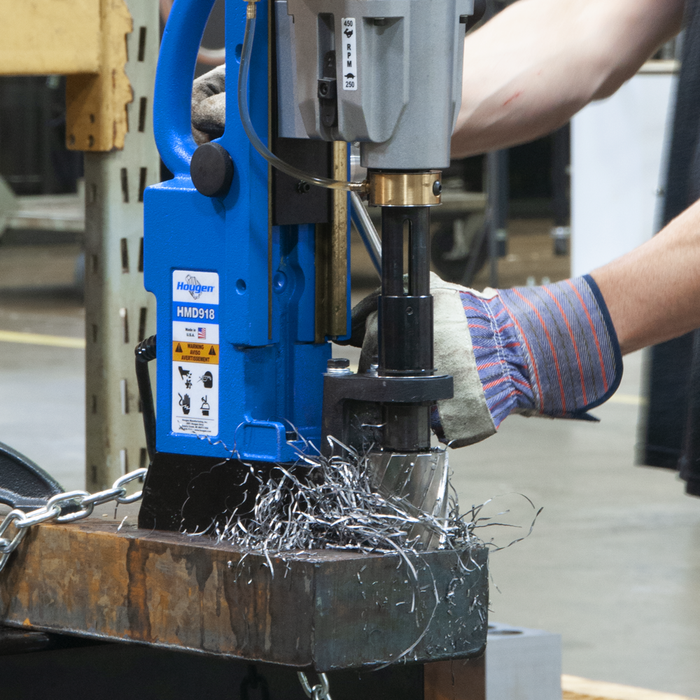

Now includes an additional arbor for positive slug ejection when using annular cutters up to 3″ deep.
From everyday drilling, to holes up to 6″ deep… plus use a wide variety of accessories such as drill chucks, tapping & more. The HMD918 is the one drill to handle most any job that comes through the shop. More Power… a two speed high torque gear box for improved tool life
