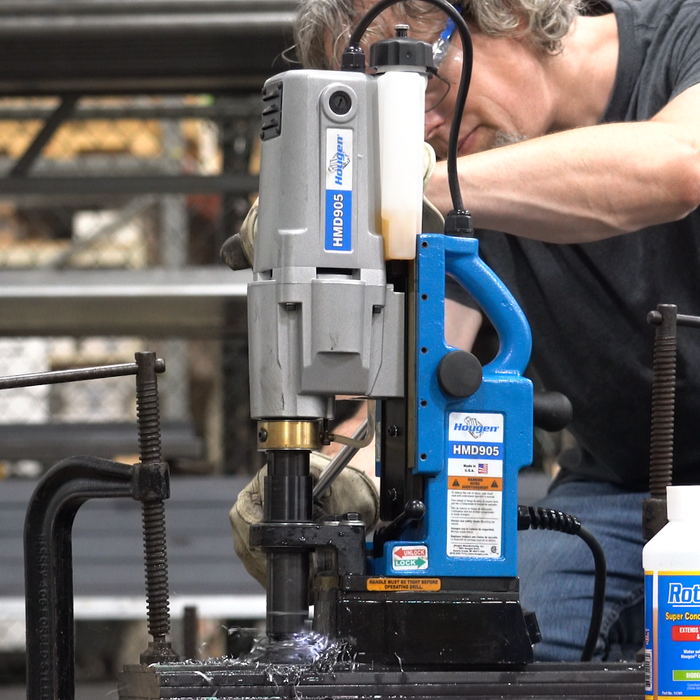

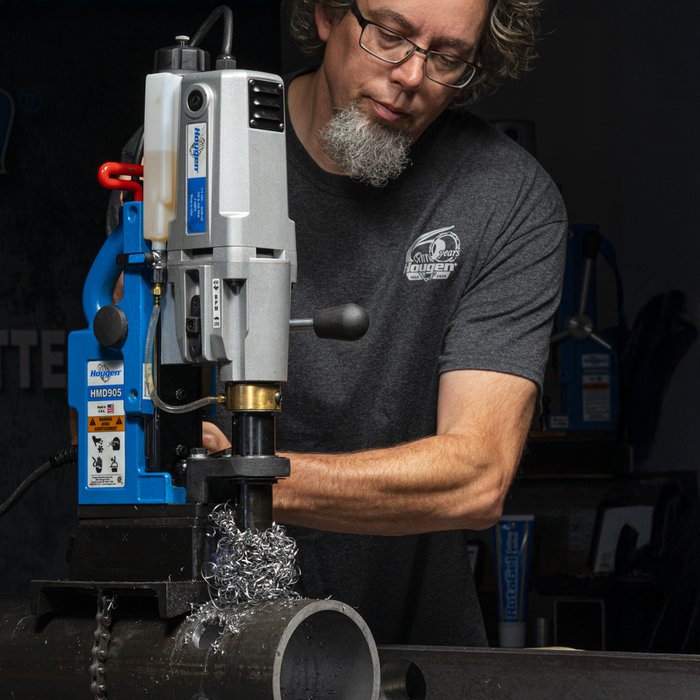

Hougen HMD905 Magnetic Drill 2 Speed Swivel Coolant Fabricators Kit Fractional - 115V 0905109

Hougen HMD905 Magnetic Drill 2 Speed Swivel Coolant Fabricators Kit Fractional - 115V 0905109

IN STOCK — READY TO SHIP Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support

SKU 0905109

by Hougen Mfg.

Sale

$ 2,400.00

$ 2,400.00 - $ 2,400.00

$ 2,400.00

$ 2,160.00

$ 2,160.00 - $ 2,160.00

$ 2,160.00

Overview

HMD905 Magnetic Drill

Larger motor with two speeds adds increased strength and versatility.

Larger motor with two speeds adds increased strength and versatility.
Powerful high torque Hougen motor and gears
Two speed gear box - 250 & 450 RPM
Pilot light for low light conditions and greater hole accuracy
Two stage magnet. Engages full power only when motor is turned on which increases magnet life
Available with or without the swivel base
Positive slug ejection
Many accessories are available to turn your drill into a portable machine shop including: drill chucks, tapping, countersink, and more...
Lift detector safety system
Integrated gravity fed coolant bottle
Carrying case included (08077)
Two year warranty

Made in USA

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.

Two Year Warranty

Two Year Warranty

American Made & Backed by the Company Who Built It

Pilot Light

Pilot Light

Pilot light for low light conditions and greater hole accuracy

Two Stage Magnet

Two Stage Magnet

Improved holding power on thin steel

Slot Drive Arbor

Slot Drive Arbor

Industrial slot drive arbor provides secure cutter engagement and reliable power transfer.

Wrench Holder

Wrench Holder

Integrated wrench holder keeps adjustment tools secure and easily accessible.

Heavy Duty Housing

Heavy Duty Housing

Durable industrial housing protects internal components in demanding jobsite environments.

Coolant Bottle

Coolant Bottle

Gravity-fed coolant bottle improves cutter life and drilling performance.

Gear Shift

Gear Shift

Two-speed gearbox allows optimal torque and cutting speed for different hole sizes.

Swivel Base

Swivel Base

Precision swivel base allows accurate hole alignment and positioning in tight work areas.

Specifications +

Electrical / Motor

Electrical System

115V, 50/60 Hz - 10A, 1150W

Motor RPM

250/450 RPM

Voltage

115V

Amperage

9A

Capacity

Annular Cutter Capacity

7/16" - 2" (12mm - 50mm)

Twist Drill Capacity

1/2" w/ drill chuck

Tapping Capacity

1/2" w/ tapping unit

Depth of Cut

2" (50mm)

Cutter / Mount

12,000-Series" & Copperhead™ cutters, 3/4" (19mm) shank

Dimensions

Dimensions

22-13/16" H x 7-11/16" W x 11-3/4" L (579mm H x 195mm W x 299mm L)

Base Dimensions

3-1/8" W x 6-9/16" L (79mm W x 167mm L)

Swivel Area

1-1/8" W x 1-3/8" L (28.5mm W x 34.9mm L)

Magnet Dimensions

3-1/8" W x 6-9/16" L (79mm W x 167mm L)

Magnet Performance

Magnet Dead Lift (1" Plate)

DEAD LIFT: (1" / 25mm Plate): 1340 lb. (608 kg)

Magnet Breakaway (1" Plate)

DRILL POINT BREAKAWAY: (1" / 25mm Plate): For. 695 lb. (315 kg); Back 835 lb. (379 kg)

Magnet Dead Lift (3/8" Plate)

DEAD LIFT: (3/8" / 9.5mm Plate): 1015 lb. (460 kg)

Magnet Breakaway (3/8" Plate)

DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): For. 503 lb.; (228 kg) Back 605 (274 kg)

Weight

Weight

38 lb. (17.2 kg)

Shipping Weight

55 lb. (24.9 kg)

Included Items +

0904104 HMD905 115V Coolant/Swivel
2″ depth “12,000-Series’ cutter Kit (12002)
1/2” drill Chuck and adapter for using twist drills
Carrying case
Pint of coolant
10730 Safety chain
10565 1/8" Hex wrench for Gib Adjustment
04558 Feed handles (3)
04532 Feed handle knobs (3)
40222 Set screw for cutter installation (2)
24166 7/32" Hex wrench

Where is a Mag Drill Used? +

Steel Fabrication
Building & Construction
Bridge Rebuilding
Mining
Ship Building
Truck, RV & Special Vehicle Build
Pipeline, Offshore & Oil Fields
Welding Shops
Power Utilities
Railroad Industries
Maintenance Facilities
Mobile Repair Shops
Machinery Riggers

Compatible Cutters +

Accessories +

OP Manual +

OM905 110V
