Hougen HMD934 Mag Drill - Four Speed 115V - 0934102

Hougen HMD934 Mag Drill - Four Speed 115V - 0934102

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 0934102
by Hougen Mfg.
Save 10% Save 10%
$ 5,344.65
$ 5,344.65 - $ 5,344.65
$ 5,344.65
$ 4,810.00
$ 4,810.00 - $ 4,810.00
$ 4,810.00

Overview

Industrial four speed, 4″ depth mag drill for heavy duty metal fabrication.
  • Industrial Duty drill for large deep holes with four speed gearing.
  • Minimal maintenance requirements
  • Powerful motor with two speed gear box
  • Interchangeable gears for up to four speeds
  • Uses “12,000-Series” Cutters
  • Integrated motor/gearbox design with guide rails for a rigid compact design
  • Pilot light for low light conditions and greater hole accuracy
  • Positive slug ejection
  • Integrated coolant system (optional pressurized system available 08446)
  • Two stage magnet. Engages full power only when motor is turned on which increases magnet life
  • Increased magnet holding power with impactor points
  • Lift detector safety system
  • Two year warranty
Made in USA

Made in USA

Proudly manufactured in the United States for superior quality, durability, and reliability in demanding industrial environments.
Pilot Light

Pilot Light

Pilot light for low light conditions and greater hole accuracy
Two Stage Magnet

Two Stage Magnet

Improved holding power on thin steel

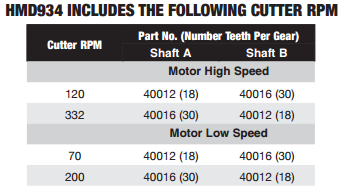

Industrial Four Speed

Industrial Four Speed

Gearing included for the following cutter RPM: 70, 120, 200, 332.
Two Year Warranty

Two Year Warranty

American Made & Backed by the Company Who Built It
Electrical / Motor
Electrical System
115V, 50/60 Hz - 13.5A, 1553W
Motor RPM
70/120/200/332 RPM
Voltage
115V
Amperage
13.5A
Capacity
Annular Cutter Capacity
3/4" - 3-1/16" (19mm - 77mm)
Depth of Cut
4" (100mm)
Cutter / Mount
"12,000-Series" cutters, 3/4" (19mm) shank
Dimensions
Dimensions
26-1/4" H x 10" W x 17-3/4" L (667mm H x 254mm W x 451mm L)
Base Dimensions
5" W x 7" L (127mm W x 178mm L)
Magnet Dimensions
5" W x 7" L (127mm W x 178mm L)
Magnet Performance
Magnet Dead Lift (1" Plate)
DEAD LIFT: (1" / 25mm Plate): 2745 lb. (1245 kg)
Magnet Breakaway (1" Plate)
DRILL POINT BREAKAWAY: (1" / 25mm Plate): 1492 lb. (676 kg)
Magnet Dead Lift (3/8" Plate)
DEAD LIFT: (3/8" / 9.5mm Plate): 1153 lb. (522 kg)
Magnet Breakaway (3/8" Plate)
DRILL POINT BREAKAWAY: (3/8" / 9.5mm Plate): 627 lb. (284 kg)
Weight
Weight
72 lb. (32.6 kg)
Shipping Weight
94 lb. (42.6 kg)
  • 0934102 HMD934 115V
  • 10730 - Safety Chain
  • 10569 - Feed Handles (3)
  •  04532 - Knobs (3)
  • 10565 - Hex Key 1/8" S.A
  • 13013 - Wrench Allen 5/32"
  • 10779 - Wrench Allen 7/32
  •  01292 - Wrench Allen 1/4"
  • 10727 - Wrench Allen 3/16"
  • 10780 - Wrench Allen 5/16
  • 10781 - Wrench Allen 3/8"
  • 40041 - Screw-Soc Set 5/8-11
  • 40042 - Screw-Soc Set 3/4-10 (2
  • 40061 - Handle Assembly
  • 05487 - Grease - Lubriplate GR-132
  • 40126 - Coolant Btl. Assembly * *(sometimes packed separately)
  • Steel Fabrication
  • Building & Construction
  • Bridge Rebuilding
  • Mining
  • Ship Building
  • Truck, RV & Special Vehicle Build
  • Pipeline, Offshore & Oil Fields
  • Welding Shops
  • Power Utilities
  • Railroad Industries
  • Maintenance Facilities
  • Mobile Repair Shops
  • Machinery Riggers
“12,000-Series” Annular Cutters

“12,000-Series” Annular Cutters

The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut.[Learn More]

Learn More →
“12,000-Series” TiN Coated Cutters

“12,000-Series” TiN Coated Cutters

TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available... [Learn More]

Learn More →
Hougen Xtreme Cobalt Annular Cutters

Hougen Xtreme Cobalt Annular Cutters

Built for extreme conditions and tough materials. Made from premium M42 and IronEdge™ coated. Performance, extended tool life, and reliability in the most demanding applications.[Learn More]

Learn More →
Copperhead Carbide Tip Cutters

Copperhead Carbide Tip Cutters

Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".[Learn More]

Learn More →
Hole Enlarging Pilots – “12,000 SERIES”

Hole Enlarging Pilots – “12,000 SERIES”

Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size.[Learn More]

Learn More →
RotaMagic Super Concentrated Cutting Fluid

RotaMagic Super Concentrated Cutting Fluid

RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.[Learn More]

Learn More →
Slick-Stik Lubricant

Slick-Stik Lubricant

Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.[Learn More]

Learn More →
RotaFoam Cutting Fluid

RotaFoam Cutting Fluid

Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.[Learn More]

Learn More →
RotaGel Cutting Lube

RotaGel Cutting Lube

Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.[Learn More]

Learn More →
Arbor Extender

Arbor Extender

When extended reach is necessary, Hougen offers 1" and 2" Arbor Extenders that fit 3/4" shank cutter.[Learn More]

Learn More →
Hole Enlarging Pilots – “12,000 SERIES”

Hole Enlarging Pilots – “12,000 SERIES”

Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size.[Learn More]

Learn More →
