Hougen 0764102 76004PR 40V Cordless Hole Puncher

Save 14% Save 14%
Original price $ 4,995.00
Original price $ 4,995.00 - Original price $ 4,995.00
Original price $ 4,995.00
Current price $ 4,300.00
$ 4,300.00 - $ 4,300.00
Current price $ 4,300.00

Individual Annular Cutters & Hougen Parts

  • "12,000-Series" Annular Cutters 3" - 6 " DOC (Pilots are not included)
  • RotaLoc and RotaLoc Plus Annular Cutters (Pilots are not included)
  • Copperhead Carbide Tip Annular Cutters (Pilots are not included)
  • If the Hougen part you need is not listed on our website, please send us a message at HERE. Be sure to include the model, serial number, and the part you are looking for.
PUNCHES AND DIES FOR 76004PR PDF (click here)
40V Cordless
Punch holes like never before with the 40V Hougen-Ogura hole puncher. It produces 16.9 tons of punching pressure can quickly punch through 3/8" materials in 4 seconds. Easily confirm the hole position with the jog down feature. Punch automatically returns to the starting position after the punching cycle is complete. If punch ever resists returning to the home position, squeeze the trigger for power feed return. The 76004PR is a self contained unit that utilizes a 40V Lithium-ion battery. Includes: 4 ah battery (09788), charger (09787), 9/16" punch & die, tool kit and carrying case.
Punch flat bar
Flat Bar
Punch H steel
Punch angle iron
Punch steel channel

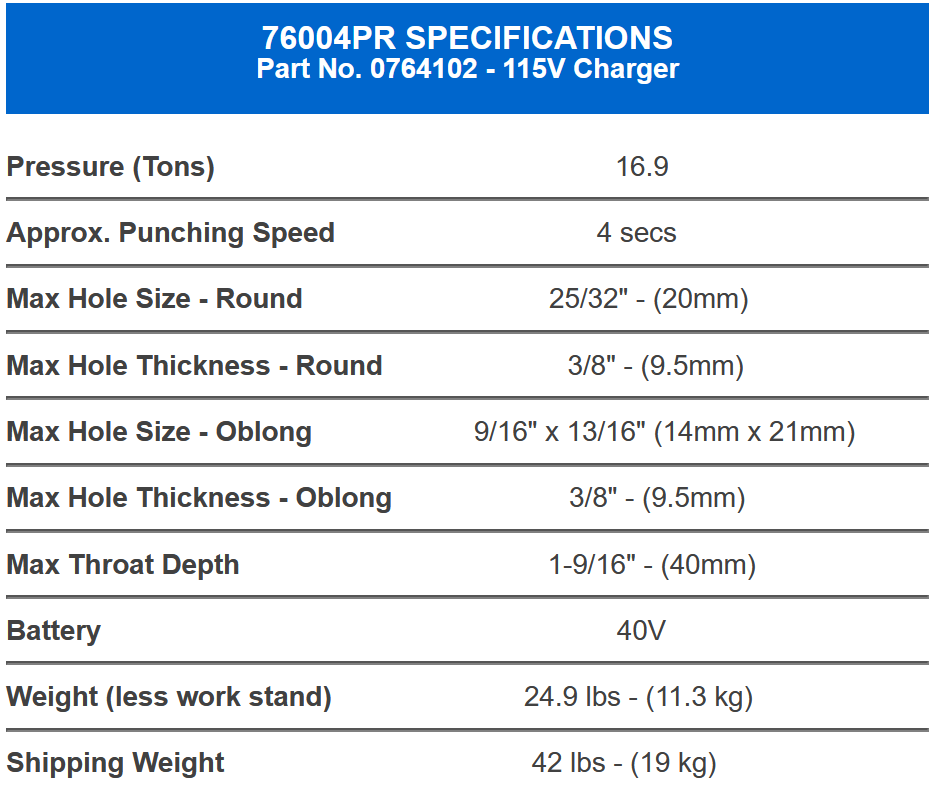

Part No. 0764102 - 115V Charger

Pressure (Tons)
Approx. Punching Speed                                  4 secs

Max Hole Size - Round                                25/32" - (20mm)
Max Hole Thickness - Round                        3/8" - (9.5mm)
Max Hole Size - Oblong                     9/16" x 13/16" (14mm x 21mm)
Max Hole Thickness - Oblong                       3/8" - (9.5mm)
Max Throat Depth                                        1-9/16" - (40mm)
Battery                                                                   40V

Weight (less work stand)                         24.9 lbs - (11.3 kg)
Shipping Weight                                        42 lbs - (19 kg)

* Hougen-Ogura Punches are designed for mild & structural steel, but can be used in other materials. Using in stainless or other materials significantly reduces the capacity. Consult Hougen Technical Support for questions about your
particular application: (810) 635-7111
