Hougen 12980-2 "12,000-Series" Cutter Kit - 1/2, 5/8, 3/4" 2" DOC

Save 9% Save 9%
Original price $ 157.33
Original price $ 157.33 - Original price $ 157.33
Original price $ 157.33
Current price $ 143.00
$ 143.00 - $ 143.00
Current price $ 143.00

Individual Annular Cutters & Hougen Parts

  • "12,000-Series" Annular Cutters 3" - 6 " DOC (Pilots are not included)
  • RotaLoc and RotaLoc Plus Annular Cutters (Pilots are not included)
  • Copperhead Carbide Tip Annular Cutters (Pilots are not included)
  • If the Hougen part you need is not listed on our website, please send us a message at HERE. Be sure to include the model, serial number, and the part you are looking for.

Item Details

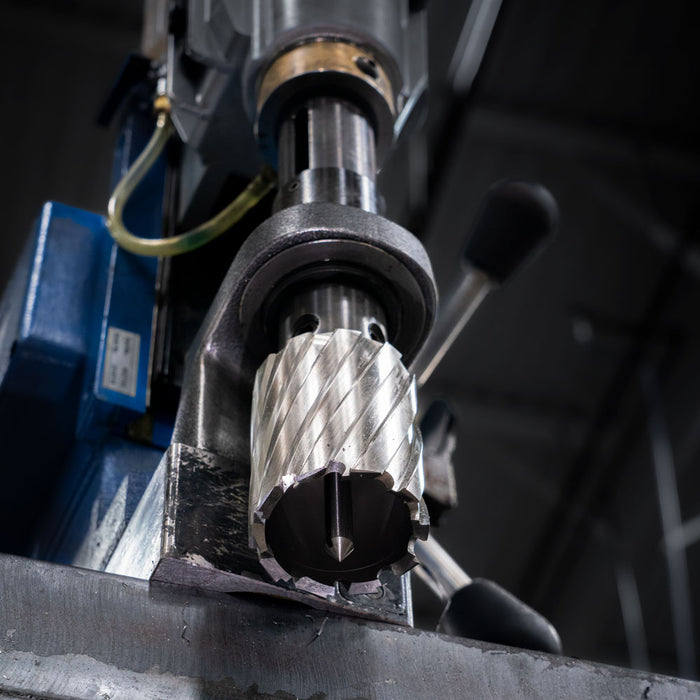

For use with Hougen® Portable Magnetic Drills and many competitive models on materials up to 275 BHN (28.5 HRC). They are made of hardened M2 high speed steel and are precision ground for excellent performance throughout the cut and long tool life. They require less horsepower and thrust to cut, and last much longer than traditional holemaking methods. "12,000-Series" cutters have a 3/4" diameter double-flatted shank. Modified end tooth geometry is also available for drilling in stacked plate applications. For extended tool life and lower cost per hole "12,000-Series" Cutters are resharpenable.

Benefits

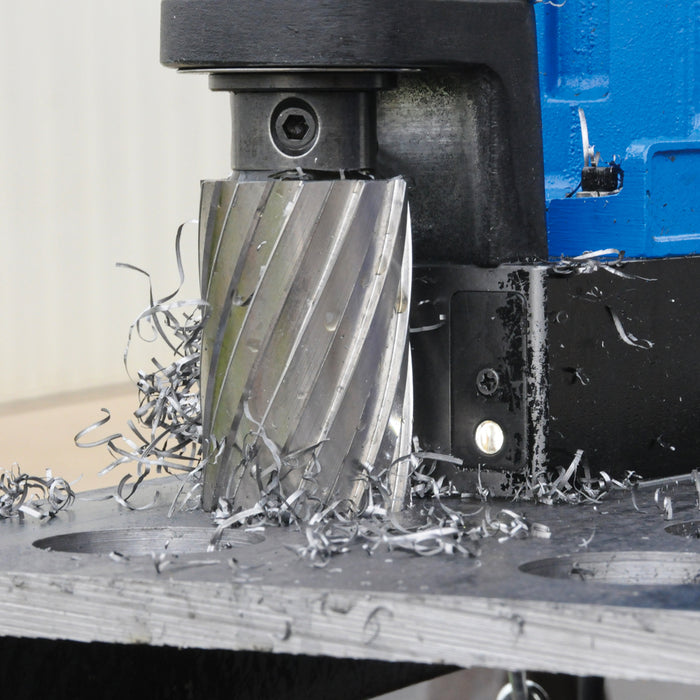

  • Makes large diameter holes efficiently without the mess of chips
  • Hole produces a slug of material that could be used for another job

Features

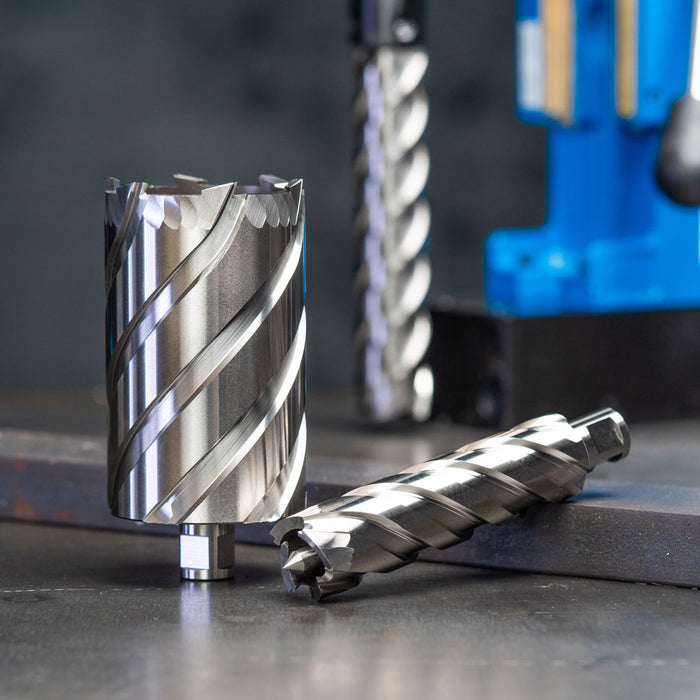

  • Hardened M2 high speed steel material
  • Precision ground & fully fluted provides better chip evacuation, requires less horsepower & offers better performance in deeper holes
  • 3/4" double flatted shank is very rigid & offers up to 2 times the tool life as compared to quick change tool mounting on competitive products
  • Only a thin area of material touches the outside of the hole which provides for less friction and a better hole finish
  • Patented hougen-edge geometry provides faster, smoother cuts, with less chatter
  • Tapered inner diameter provides a relief area between the slug & cutter to reduce horsepower & improve slug ejection
  • Up to 10 cutting edges distribute the cutting load evenly to maximize feed rates
  • The slug offers a higher scrap value than loose chips

Request a quote
SKU 12980-2
