Hougen 12419 19MM X 50MM "12,000-Series" Annular Cutter

Hougen 12419 19MM X 50MM "12,000-Series" Annular Cutter

Save 15% Save 15%
$ 66.82
$ 66.82 - $ 66.82
$ 66.82
$ 56.80
$ 56.80 - $ 56.80
$ 56.80
Authorized Hougen Distributor Made in USA Required Pilot: 10528 Pilot Included
by Hougen Mfg.
SKU 12419
CUTTING DIAMETER (MM)
19
DECIMAL EQUIV. (IN)
0.748
DEPTH OF CUT (MM)
50 DOC
SHANK
3/4" Double-Flatted Weldon
MATERIAL
Hardened M2 High-Speed Steel (HSS)
SERIES
12,000 Series
REQUIRED PILOT
10528
PILOT (INCLUDED)
Included
ORIGIN
Made in USA

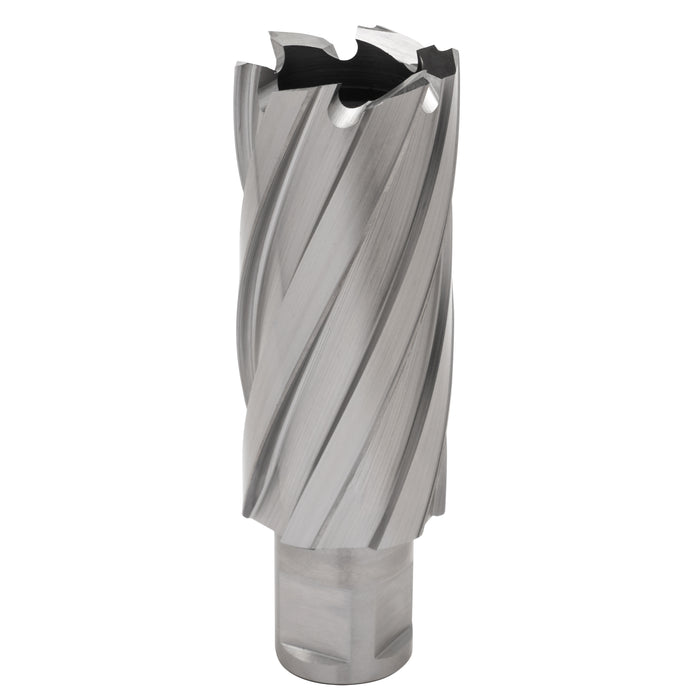

HOUGEN® "12,000-SERIES" ANNULAR CUTTERS

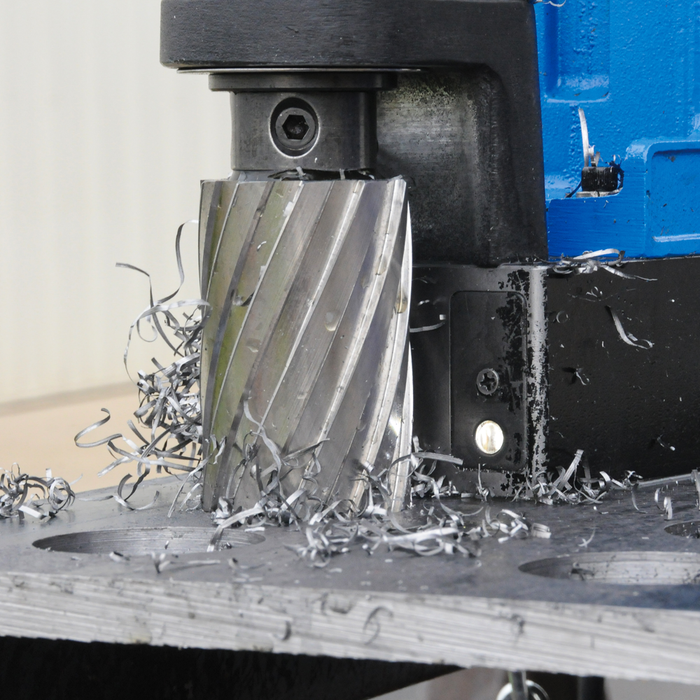

Professional-grade Hougen annular cutter engineered for fast, accurate holemaking in steel and alloy materials up to 275 BHN (28.5 HRC). Manufactured from hardened M2 high-speed steel with patented Hougen-Edge® geometry for smooth cutting, long tool life, and reduced horsepower requirements.

Features & Benefits

  • Requires less horsepower and thrust than traditional holemaking
  • Produces clean, burr-free holes with excellent finish

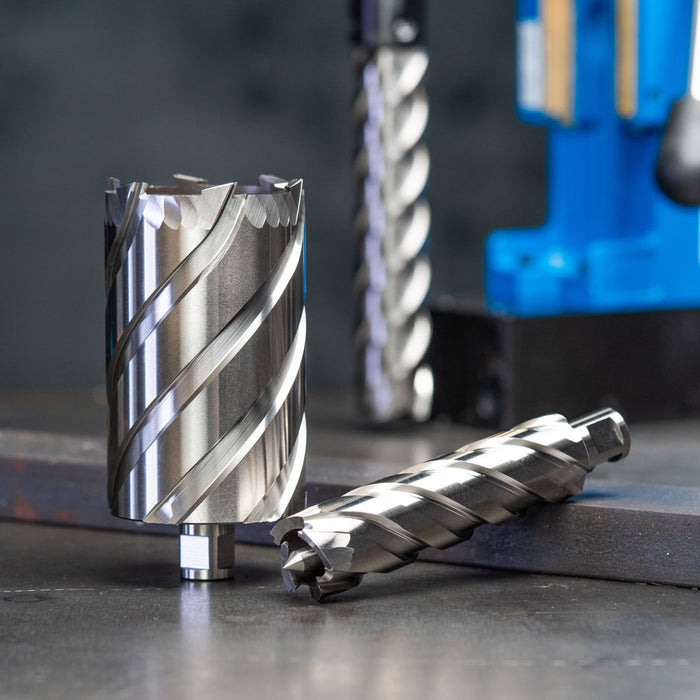

  • Precision-ground, fully fluted design improves chip evacuation
  • Patented Hougen-Edge® geometry for faster, smoother cuts
  • Tapered inner diameter improves slug ejection and reduces friction
  • Up to 10 cutting edges distribute load evenly
  • Resharpenable for extended tool life and lower cost per hole
  • Series: 12,000 Series
  • Shank: 3/4" Double-Flatted Weldon
  • Material: Hardened M2 High-Speed Steel (HSS)
  • Required Pilot: 10528
  • Pilot Included: Yes

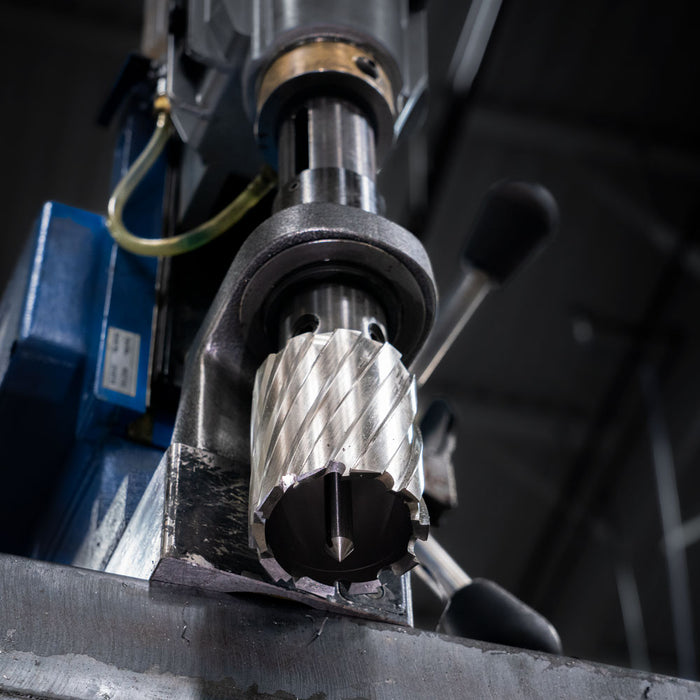

Compatible with Hougen® portable magnetic drills and most competitive magnetic drill systems using a 3/4" Double-Flatted Weldon shank.

Designed for use in structural steel, plate, pipe, and stacked material within the cutter’s rated hardness range.

Annular cutter only unless otherwise specified. Refer to the product details above for pilot requirements.
