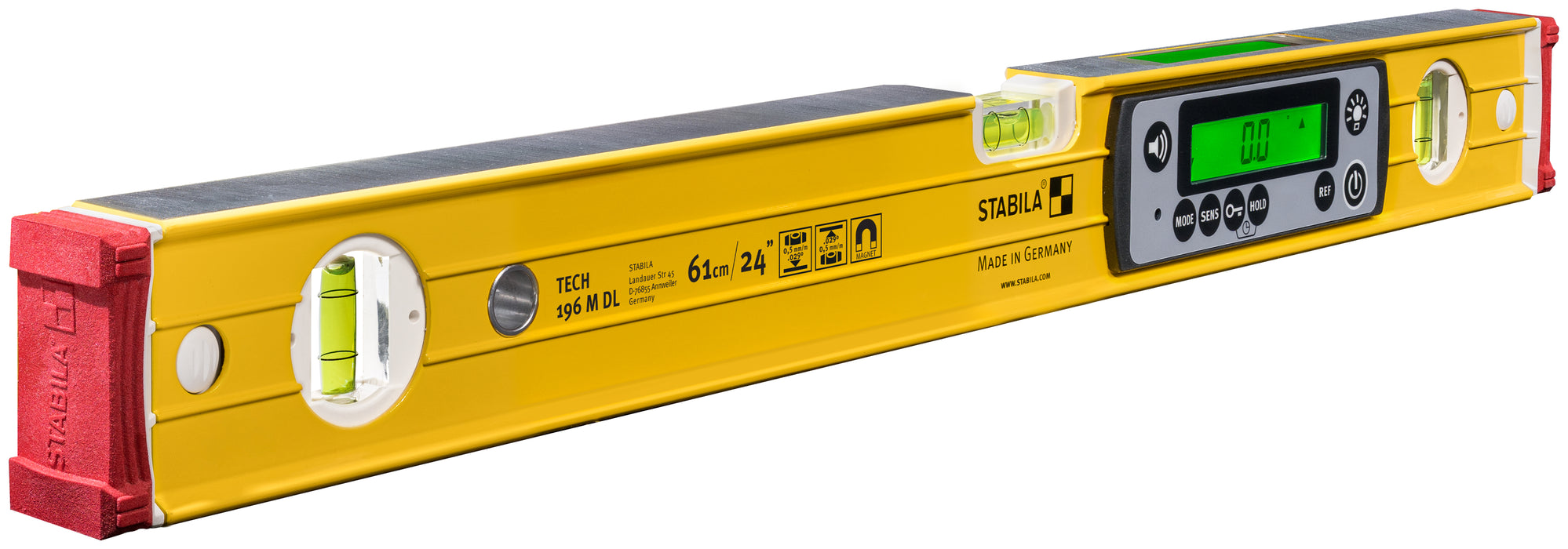

Water, dust, dirt and impacts – tools have to take a lot. The TECH 196 M DL electronic spirit level from STABILA is ideally equipped for hard days at the construction site. Cleaning under running water is no problem thanks to ULTRA-PROTECT, and the high-precision electronic module does not need to be calibrated after falling or being exposed to temperature fluctuations. The innovative features of this German Made quality product simplify every measuring task: two digital displays with adjustable illumination, acoustic guidance, extra-strong rare earth magnets and numerous display modes.

Electronic spirit level with two digital displays for instant measurement of inclines, slopes and angles.

ULTRA-PROTECT: Optimum protection against dust and water in accordance with IP 67 – the spirit level can be temporarily submerged.

Optimal read-out: Two digital displays, illuminated at the press of a button.

Acoustic guidance: Quick alignment of structural elements without looking at the spirit level – with two audible signals.

CAL-FREE: In daily use, it is not necessary to calibrate the electronics – even after falling or being exposed to temperature fluctuations.

The digital display rotates to the reverse position.

REF-MODE: Take, save and transfer an angle measurement to other structural elements.

KEY-LOCK: Keyboard lock to prevent accidental input.

Display modes: °, %, mm/m, in/ft – decimal and as a fraction.

ROOF-PITCH mode (in/ft) to quickly determine the roof pitch.

Long operating time: Up to 400 hours.

Extra-strong rare-earth magnet system.

Case for safe transport.

Ideally suited for metal construction, metalwork and formwork. Users have free hands when aligning and adjusting structural elements.

Measurement accuracy in normal position ±

1/32in @ 72in

Measurement accuracy in reverse position ±

1/32in @ 72in

Accuracy with electronic inclination measurement at 0° and 90° ±

0.05°

Accuracy with electronic inclination measurement at 1° to 89° ±

0.10°

Measuring modes

°, %, mm/m, inch/ft

Number of measuring surfaces

2

Magnet system

Rare-earth magnet

End caps

Removable / Wall Grips / Shock Absorbing

Profile

Rectangular profile with ribs

Protection rating

IP 67

TECH 196 M DL digital spirit level / 24″ (61 cm), level carrying case, 2 x AA batteries
