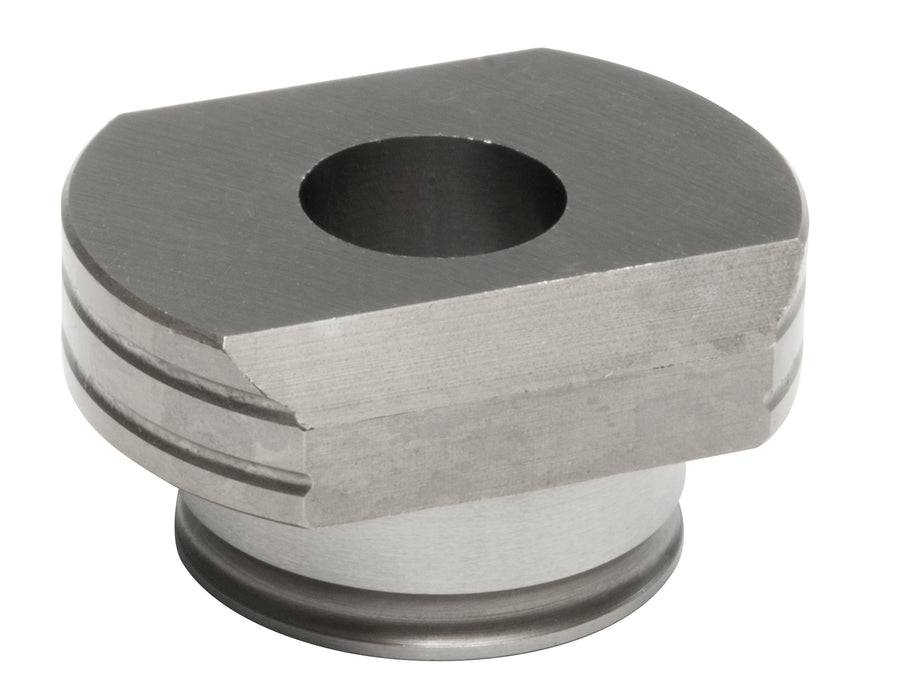

Hougen 76588 1/2" Round Die SA (5/64-1/8THK)

Hougen 76588 1/2" Round Die SA (5/64-1/8THK)

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 76588
by Hougen Mfg.
$ 64.10 - $ 64.10
$ 64.10
$ 64.10
$ 64.10 - $ 64.10
$ 64.10
Shape
Round
Size
1/2"
Material Thickness
5/64 (.078) to 1/8 (.125) 14 to 11 GA
Style
SA
Special thin
Part Number
76588
Material Type
Flat Steel
Flat Steel
Material Type
Angle
Angle
Compatible Tools
Hougen 76000PR 18V Cordless Hole Puncher-120V (1/4 Max Thick) - 0760102
Compatibility
76000PR
Description +
Ogura/Punch-Pro's are fast to operate because they punch clean, accurate holes in as little as 2.3 seconds with the single pull of a trigger while an auto-return mechanism automatically returns the punching rod to the starting position. The punch can also easily be jogged down for accurate hole location.

Punch round or oblong holes...round holes from 1/4" to 15/16" diameters and oblong holes 1/4" X 1/2" to 11/16" X 13/16" through up to 1/2" thick materials including Flat Bar, Channel, Angle and H-Beam.

 * See Punch Chart for maximum thickness
   ** See Punch Chart for maximum punch size

Why Hougen-Ogura?

Specifications +
Part Number 76588
Shape Round
Size (Nominal Inches) 1/2"
Size (Actual Decimal Inches) .503
Size (Metric Estimate) 12.5mm
Style SA — Special thin
Material Thickness 5/64 (.078) to 1/8 (.125) 14 to 11 GA
Material Type
Flat Steel
Flat Steel
Angle
Angle
Note Decimal inch and metric sizes are estimated conversions for reference only.
