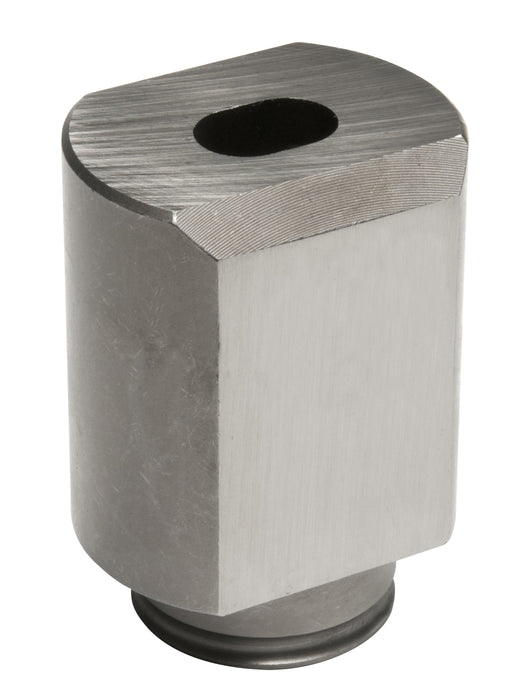

Hougen 75663 1/2" X 3/4" B Oblong Long Die (>1/8-1/4THK)

Hougen 75663 1/2" X 3/4" B Oblong Long Die (>1/8-1/4THK)

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 75663
by Hougen Mfg.
$ 108.00 - $ 108.00
$ 108.00
$ 108.00
$ 108.00 - $ 108.00
$ 108.00
Size
1/2" x 3/4"
Material Thickness
>1/8 (.125) to 1/4 (.250) 10 to 3 GA
Style
B
Medium thickness
Part Number
75663
Material Type
Flat Steel
Flat Steel
Material Type
Angle
Angle
Material Type
H-Steel
H-Steel
Compatibility
75003A
Description +
Ogura/Punch-Pro's are fast to operate because they punch clean, accurate holes in as little as 2.3 seconds with the single pull of a trigger while an auto-return mechanism automatically returns the punching rod to the starting position. The punch can also easily be jogged down for accurate hole location.

Punch round or oblong holes...round holes from 1/4" to 15/16" diameters and oblong holes 1/4" X 1/2" to 11/16" X 13/16" through up to 1/2" thick materials including Flat Bar, Channel, Angle and H-Beam.

 * See Punch Chart for maximum thickness
   ** See Punch Chart for maximum punch size

Why Hougen-Ogura?

Specifications +
Part Number 75663
Size (Nominal Inches) 1/2" x 3/4"
Size (Actual Decimal Inches) .503 x .750
Size (Metric Estimate) 12.5mm x 19mm
Style B — Medium thickness
Material Thickness >1/8 (.125) to 1/4 (.250) 10 to 3 GA
Material Type
Flat Steel
Flat Steel
Angle
Angle
H-Steel
H-Steel
Note Decimal inch and metric sizes are estimated conversions for reference only.
