Hougen 0130101 HMD130 Ultra Low Profile Magnetic Drill-115V

Authorized Hougen Distributor Fast Shipping Genuine Hougen Parts Expert Tool Support
SKU 0130101
Save 10% Save 10%
Original price $ 1,471.25
Original price $ 1,471.25 - Original price $ 1,471.25
Original price $ 1,471.25
Current price $ 1,324.00
$ 1,324.00 - $ 1,324.00
Current price $ 1,324.00

Overview

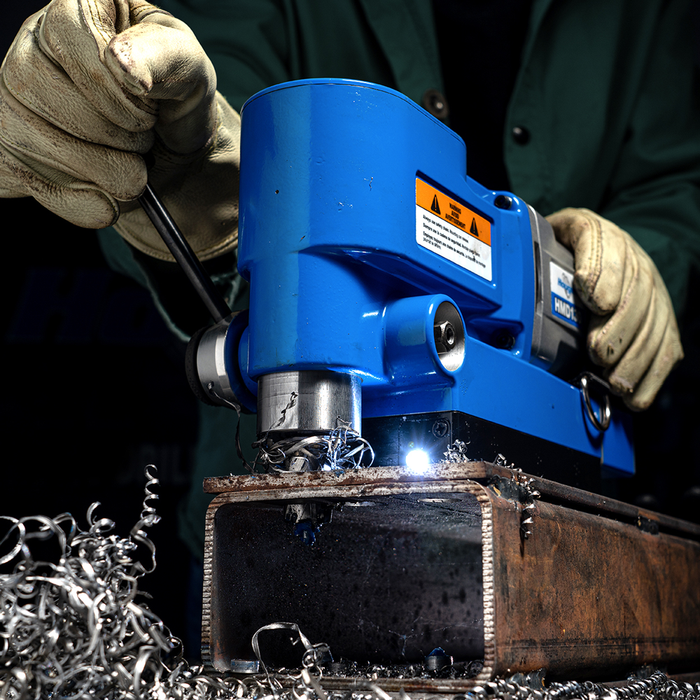

HMD130 Ultra Low Profile Magnetic Drill

Ultra low profile lightweight right
angle drill for truck frames & general
fabrication.
  • Only 6-15/32" high for extreme tight spots
  • Lightweight at only 23.8 lbs (10.8 kg)
  • Patented quill feed arbor for smooth cuts and minimal maintenance
  • Uses RotaLoc Plus™ cutters which requires no tools for installation or removal
  • Pilot light for low light conditions and greater hole accuracy
  • Two stage magnet. Engages full power only when motor is turned on which increases magnet life
  • Positive slug ejection
  • High torque gearing
  • Lift detector safety system
  • Feed handle switches easily from side to side
  • Ratchet can be used in place of feed handle
  • Rear mounted controls
  • Carrying case included (08498)
  • Two year warranty
Electrical / Motor
Electrical System
115V, 50/60 Hz - 9A, 1035W
Motor
8A (115V), 450 RPM
Motor RPM
450 RPM
Voltage
115V
Amperage
9A
Capacity
Annular Cutter Capacity
7/16"- 1-3/8" (12mm - 35mm)
Depth of Cut
1" (25mm)
Dimensions
Magnet Dimensions
4" W x 9" L (102mm W x 229mm L)
Weight
Weight
23.8 lb. (10.8 kg)
Shipping Weight
31.7 lb. (14.4 kg)

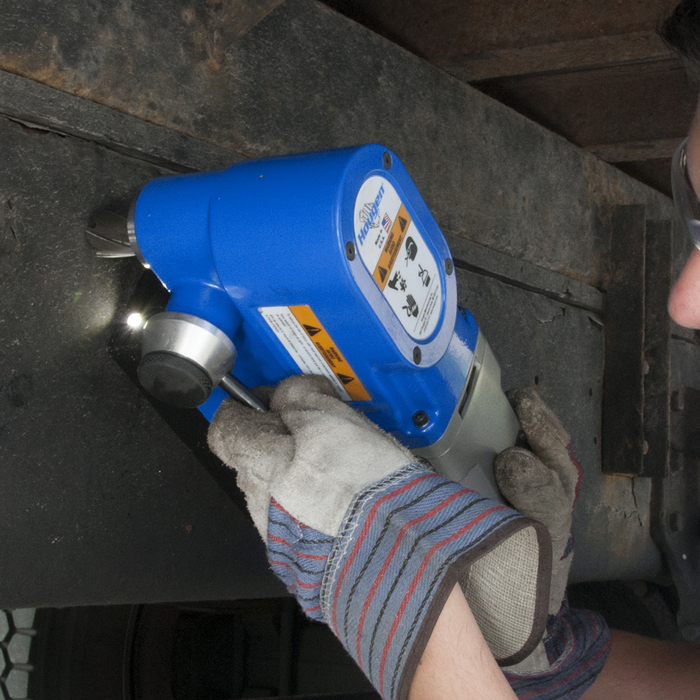

  • Get into the tightest of spaces and drill holes behind the wheels on truck frames
  • Steel Fabrication
  • Building & Construction
  • Bridge Rebuilding
  • Mining
  • Ship Building
  • Truck, RV & Special Vehicle Build
  • Pipeline, Offshore & Oil Fields
  • Welding Shops
  • Power Utilities
  • Railroad Industries
  • Maintenance Facilities
  • Mobile Repair Shops
  • Machinery Riggers
